1060 aluminum is a commercially pure aluminum alloy, which means it has a minimum aluminum content of 99.6%. This alloy is known for its excellent formability, high corrosion resistance, and good thermal and electrical conductivity.
1060 Aluminum Plate can be produced in various thicknesses, widths and lengths depending on application requirements. It can also be processed by different methods such as cold working, hot working, annealing, etc. to achieve different mechanical properties and surface finish.
1060 Aluminum Plate Specifications
- State : O, H24, H48, H14, H12
- Thickness : 0.2mm - 6.0mm (8mil - 240mil)
- Width : 100mm - 2000mm (4 inches - 78 inches)
- Length : up to 6000 mm (240 in)
- Surface treatment : satin finish (unaltered), bright finish, brushed, embossed
- Pattern : stucco, diamond, etc.
- Standard : ASTM B209, EN573-1, GB/T3880.1-2012
- Equivalent to : AA 1060, UNS A91060, ISO Al99.6
1060 Aluminum Plate Advantages
- The production process is relatively simple
- The technology is relatively mature
- The price is relatively high compared to other high-end alloy aluminum plates
- It has good elongation and tensile strength
- High formability
1060 Aluminum Plate Performance Data
| Property | Description |
| Machinability | Fair to poor, improved in harder (cold worked) tempers like H16 and H18; use carbide or high-speed steel tooling; lubricants recommended but some cutting can be done dry. |
| Forming | Excellent forming capability by both cold or hot working using commercial techniques. |
| Welding | Can be welded by standard commercial methods; if filler rod is needed, use AL 1060; trial and error may be required for resistance welding. |
| Heat Treatment | Does not harden by heat treatment; may be annealed after cold working. |
| Forging | Can be forged in the temperature range of 950 to 700°F. |
| Hot Working | Can be hot worked in the range of 900 to 500°F. |
| Cold Working | Excellent cold working characteristics; can be readily cold worked by all conventional methods. |
| Annealing | May be annealed at 650°F followed by air cooling. |
| Aging | Not applicable. |
| Tempering | Not applicable. |
| Hardening | Hardens only from cold working; tempers H12, H14, H16, H18 determined by the amount of cold work. |
Mechanical Properties of 1060 Aluminum Plate
| Alloy Temper | Specified | Tensile | Yield | Elongation(%) |
| Thickness(in.) | strength(ksi) | strength(ksi) | ||
| 1060-O(annealed) | 0.006-0.019 | 8.0-14.0 | 2.5 | Min15 |
| 0.020-0.050 | Min22 | |||
| 0.051-3.000 | Min25 | |||
| 1060-H12/1060-H22 | 0.017-0.050 | 11.0-16.0 | 9 | Min6 |
| 0.051-2.000 | Min12 | |||
| 1060-H14/1060-H24 | 0.006-0.019 | 12.0-17.0 | 10 | Min1 |
| 0.020-0.050 | Min5 | |||
| 0.051-1.000 | Min10 | |||
| 1060-H16/1060-H26 | 0.006-0.019 | 14.0-19.0 | 11 | Min1 |
| 0.020-0.050 | Min4 | |||
| 0.051-0.162 | Min5 | |||
| 1060-H18/1060-H28 | 0.006-0.019 | Min16.0 | Min12.0 | Min1 |
| 0.020-0.050 | Min3 | |||
| 0.051-0.128 | Min4 | |||
| 1060-H112 | 0.250-0.499 | Min11.0 | Min7.0 | Min10 |
| 0.500-1.000 | Min10.0 | Min5.0 | Min20 | |
| 1.001-3.000 | Min9.0 | Min4.0 | Min25 |
Typical 1060 Aluminum Plate
1060 H24 Aluminum Plate
The H24 state of 1060 aluminum is harder and harder than the O and H14 states, and has good stress and crack resistance.
Application : Suitable for general sheet metal processing, as well as electrical panels, transformers and automotive parts.
1060 H12 Aluminum Plate
1060 aluminum in the H12 state has good machinability and is less prone to cracking than other states.
Applications : Suitable for spinning and drawing applications, as well as general sheet metal processing, fan blades and reflectors.
1060 H14 Aluminum Plate
The H14 state of 1060 aluminum is slightly harder and more rigid than the O and H12 states.
Applications : Suitable for stamping, forming and bending applications, as well as electrical panels, transformers and signage.

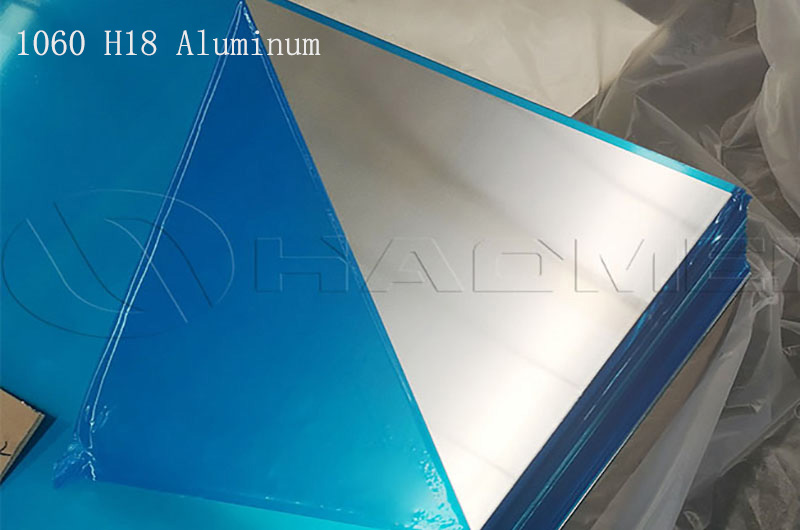

1060 H18 Aluminum Plate
1060 aluminum in the H18 state has the highest strength and hardness among all states, and has good resistance to compressive deformation. This Application : Suitable for applications requiring high strength such as bus bars, electrical conductors and transformers.
1060 O Aluminum Plate
The annealed state of 1060 aluminum is soft, has good ductility, high formability, and is easy to process and shape.
Application : Suitable for deep drawing and forming applications, also for kitchenware, heat exchangers and reflectors.
What is 1060 Aluminum Plate Used for?
1060 Aluminum Plate for Automobile Heat Shield
The material of the insulation board is generally made of industrial pure aluminum, such as 1060 aluminum plate. The body heat shield is generally arranged on both sides of the engine and above the exhaust pipe channel at the bottom of the body.
Automobile insulation panels mainly use the principle of reflective insulation of heat shields.
1060 automotive heat insulation aluminum plate function :
- Reduce the transfer of radiant heat flow
- Partial noise isolation
Click to learn more aboutAutomotive Aluminum Plate

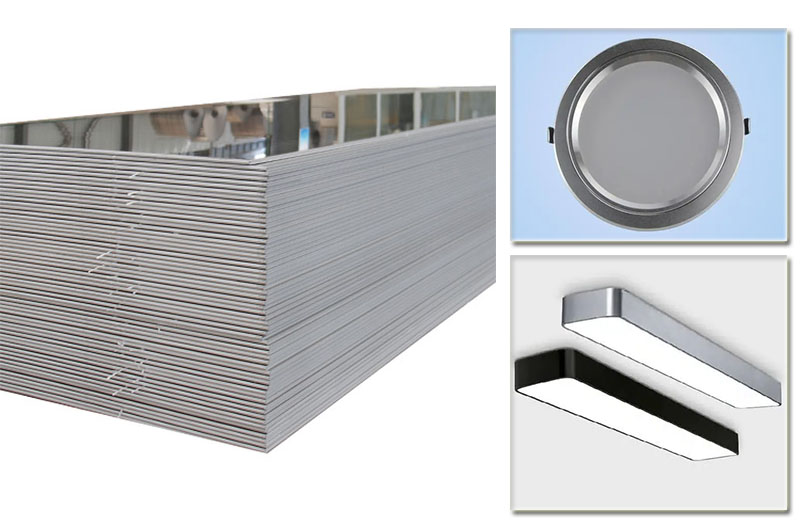

1060 Aluminum Plate for LED Lighting
1060 pure aluminum plate has excellent performance and is a commonly used material for LED aluminum lamp cups.
- Features : Due to the high thermal conductivity of 1060 aluminum, it is often used as the radiator shell of the LED lamp cup.
- Advantages : Meet conventional processing requirements (stamping, stretching) and high formability.
Click to learn more aboutLighting Aluminum
1060 Aluminum Plate for PS/CTP Plate Base
Printing plate-making is one of the pre-press processes. At present, aluminum-based plates are used more, usually 1050 aluminum plates, 1060 aluminum plates, 1070 aluminum plates, etc.
- Specifications : (0.14-0.38)*(400-1500)mm.
- Advantages : It can improve the efficiency and quality of plate-making and printing production.
Aluminum Closure Raw Material 1060-h24 Aluminum Plate
The Aluminum Closure made of 1060-h24 aluminum plate is very exquisite, and is widely used in the packaging of wine, beverages (including gas and non-gas) and medical and health products, and can meet special needs such as high-temperature cooking and sterilization.
1060-h24 aluminum plate for aluminum closure raw material advantages :
- Good molding effect
- Good sealing effect
- After anodizing treatment, the color is bright and the appearance is beautiful
1060 Aluminum Plate for Heat Sink
The main function of the radiator is to dissipate heat. Since 1060 aluminum is easy to process and relatively cheap, most heat sinks are currently made of aluminum alloy.
The shovel tooth radiator is generally made of 1060 aluminum plate, which has high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, excellent weldability, and is easy to withstand various pressure processing, extension and bending.

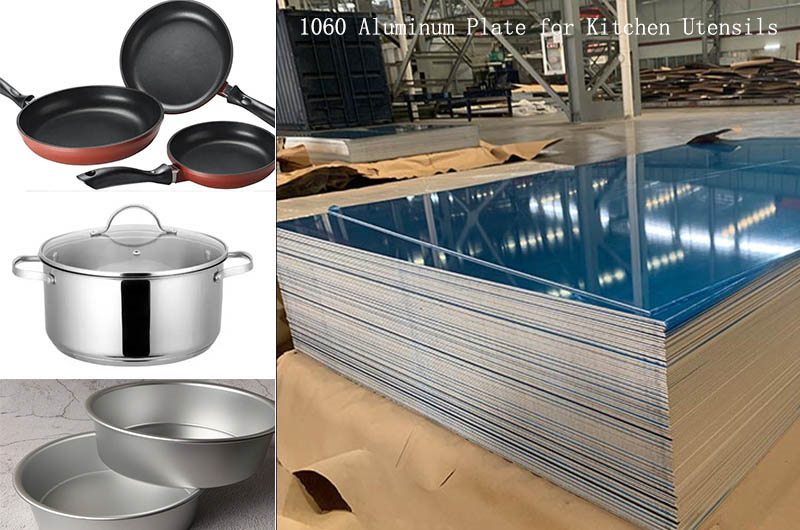

1060 Aluminum Plate for Kitchen Utensils
Aluminum alloy kitchen utensils are very common in life, with the characteristics of light weight, fast heat transfer, and convenient use. The raw materials of aluminum kitchen utensils often use 1060 aluminum plate, 1100 aluminum plate and so on.
- Thickness : 0.1-500mm
- Width : 100-2650mm
- Length : 500-16000mm
Click to learn more aboutCookware Aluminum
1060 Mirror Aluminum Plate
1060 mirror aluminum sheet is widely used, it is widely used in lighting reflectors and lamp decoration, solar heat collection reflective materials, interior building decoration, exterior wall decoration, household appliance panels, electronic product shells, furniture kitchens, car interior and exterior decoration, Signs, signs, bags, jewelry boxes and other fields.
Features : The reflectivity is stable, divided into two grades of 86% ordinary mirror and 95% super mirror, and the price is slightly more expensive.
The production process of 1060 aluminum plate is relatively simple, and the price is cheap. The 3-series and 5-series aluminum plates also have strong corrosion resistance, and the price is slightly more expensive.
Click to learn more aboutMirror Aluminum

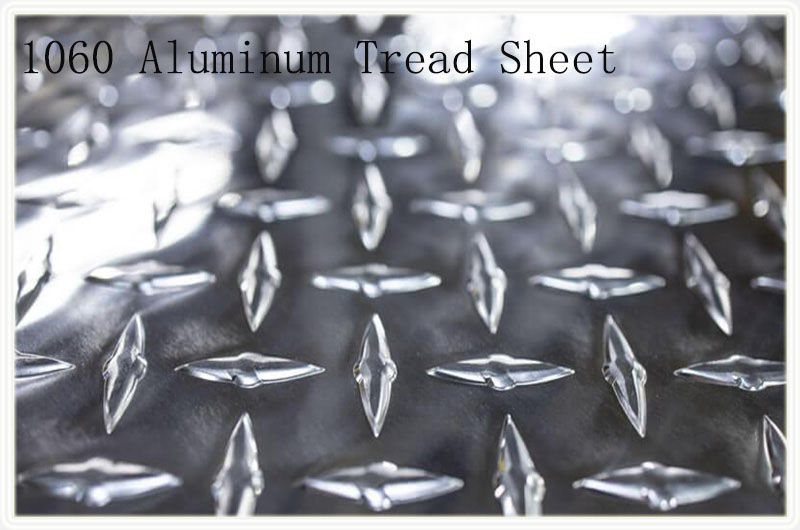

1060 Aluminum Tread Plate
As a common anti-skid plate, 1060 pattern aluminum plate has been widely used in various industries.
Although the price of 1060 patterned aluminum plate is much higher than that of steel plate, the performance, service life and value preservation of patterned aluminum plate are much higher than those of its peers.
Advantage :
- The performance of the patterned aluminum plate is better, it is easy to process, and the appearance is much more beautiful than other non-slip materials.
- The patterned aluminum plate has a longer lifespan.
- The value preservation of aluminum plate far exceeds that of other materials.
Click to learn more aboutAluminum Tread Plate
Chemical Composition of 1060 Aluminum Plate
| Element | Composition (%) |
|---|---|
| Aluminum | 99.60 min |
| Copper | 0.05 max |
| Iron | 0.35 max |
| Magnesium | 0.03 max |
| Manganese | 0.03 max |
| Silicon | 0.25 max |
| Titanium | 0.03 max |
| Vanadium | 0.05 max |
| Zinc | 0.05 max |
| Other | 0.15 max |
What is the Difference between 1050 and 1060 Aluminum Plate?
Chemical Composition
The main difference between 1050 and 1060 aluminum is their chemical composition.
- 1050 aluminum has a minimum aluminum content of 99.50%, while 1060 aluminum has a minimum aluminum content of 99.60%.
- 1060 aluminum contains a small amount of silicon, while 1050 aluminum does not.
Mechanical Behavior
1050 and 1060 aluminum alloys have very similar mechanical properties, including low strength, good corrosion resistance, and good formability.
1060 aluminum is slightly stronger than 1050 aluminum, with higher tensile and yield strengths.
Application
Since 1050 and 1060 aluminum alloys have similar properties, they can be used in many of the same applications.
- These two alloys are commonly used to make electrical conductors, heat exchangers, roofing materials and chemical equipment.
- Due to their excellent formability, these two alloys are also commonly used in the production of kitchenware, decorative parts and signage.
What is the Difference between 1060 and 6061 Aluminum Plate?
Element
- 1060 aluminum is a commercially pure aluminum alloy, which means it contains 99.6 percent aluminum and small amounts of other elements.
- 6061 Aluminum is an alloy consisting of aluminium, magnesium and silicon with small amounts of copper, chromium and zinc.
Strength
6061 aluminum is much stronger than 1060 aluminum.
- The ultimate tensile strength of 6061 aluminum can reach 290 MPa.
- The ultimate tensile strength of 1060 aluminum is only about 70 MPa.
Hardness
6061 aluminum is also much harder than 1060 aluminum.
- The hardness of 6061 aluminum is usually measured with a Brinell hardness tester, which can range from 95 to 160, depending on the hardness.
- 1060 aluminum has a relatively low hardness and is usually measured on the Rockwell B scale.
Solderability
Both 1060 and 6061 aluminum can be welded, but 6061 is more difficult to weld due to its higher magnesium and silicon content. Welding 1060 aluminum is relatively easy and can be done using a variety of welding techniques, including TIG, MIG, and resistance welding.
Applications
- 6061 aluminum is commonly used in applications requiring high levels of structural integrity and strength, such as aircraft components, automotive components and bicycle frames.
- 1060 aluminum is often used in applications that require good formability and corrosion resistance, such as electrical components, kitchen utensils and heat exchangers.
