1060 aluminum disc is a common pure aluminum product, and its chemical composition contains more than 99.6% aluminum. 1060 aluminum disc has good processing performance, electrical performance and corrosion resistance, and is widely used in kitchen utensils, lamps, electronic components, chemical containers and other fields.
- 1060 aluminum discs have excellent surface quality.
- Aluminum discs have excellent deep drawn and spun quality.
1060 aluminum discs contains 99.6% aluminum, also known as pure aluminum. 1060 aluminum round has good elongation and tensile strength, and can fully meet the conventional processing requirements (stamping, drawing) and high formability.
The density of 1060 aluminum circles decreases as the purity or temperature increases. The production process of 1060 aluminum is relatively simple, and the price is much cheaper than other high-end aluminum alloys.

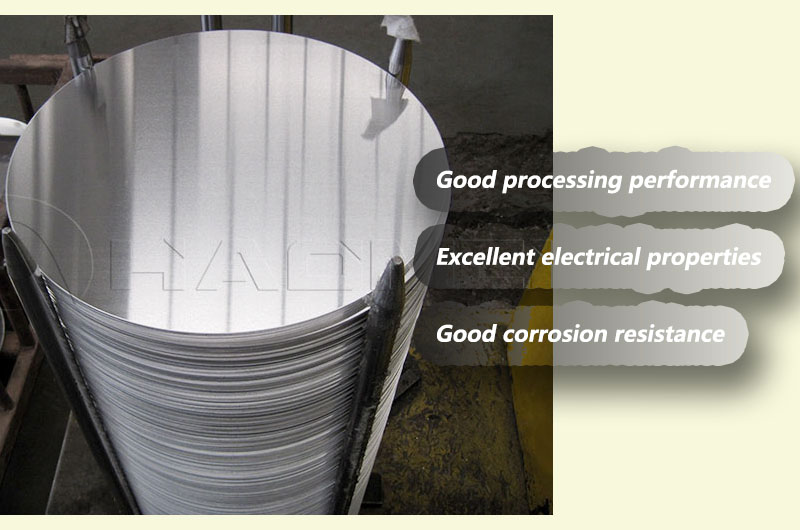

1060 Aluminum Disc Circle Features
1060 aluminum disc has high flexibility, corrosion resistance, good electrical and thermal conductivity.
- High purity, aluminum element content exceeds 99.6%
- Good processing performance, easy to form and process
- Excellent electrical properties, is a good electrical conductor
- Good corrosion resistance, suitable for use in humid environments
1060 Aluminum Disc Circle Specifications
Haomei Aluminum offers 1060 aluminum discs with thicknesses up to 5mm and diameters up to 1200mm in large format, which will meet all customer needs.
There are also many options for the hardness state of 1060 aluminum discs, such as 1060 H12 aluminum discs, 1060 H14 aluminum discs, etc., which can be selected according to different application requirements. Diameter 200-1200mm, thickness 0.3-10mm.
| Alloy | 1060 AA1060 |
|---|---|
| Temper | O H12 H22 H14 H24 etc |
| Diameter | 20-1400mm |
| Thickness | 0.2-10mm |
| Surface treatment | color coated, anodized (anodised), mirror etc |
| Equivalent alloy name | a1060, 1060a, aa1060, 1060aa, al1060, al1060a, a 1060, aa 1060 |
| Product | Diameter Range | Thickness Range |
|---|---|---|
| 1060 Aluminum Disc Circle | 200-1200mm | 0.3-10mm |
| 1060 Aluminum Disc Circle | 200-1200mm | 0.5-6mm |
| 1060 Aluminum Disc Circle | 200-1200mm | 0.3-3mm |
| 1060 Aluminum Disc Circle | 200-1200mm | 0.5-10mm |
Thickness Range: 0.3-10mm 1060 Aluminum Disc Circle
| Industry | Applications |
|---|---|
| Manufacturing of household items | Kitchenware, tableware, lamps, etc. |
Thickness Range: 0.5-6mm 1060 Aluminum Disc Circle
| Industry | Applications |
|---|---|
| Manufacturing of building materials | Reflective panels, roofing panels, shells, etc. |
Thickness Range: 0.3-3mm 1060 Aluminum Disc Circle
| Industry | Applications |
|---|---|
| Manufacturing of electronic components | Electronic components, household appliances, etc. |
Thickness Range: 0.5-10mm 1060 Aluminum Disc Circle
| Industry | Applications |
|---|---|
| Manufacturing of chemical equipment | Chemical containers, storage tanks, etc. |
1060 Aluminum Disc Circle Diameter Tolerance
Because the 1060 aluminium wafers possess good ductility, so there is a little tolerance after the annealing. You see the difference in the form below.
| Nominal Diameter | Tolerance |
|---|---|
| Multiple of 5mm | +/- 0.5mm |
| Not multiple of 5mm | +/- 3.0mm |
1060 Aluminum Disc Circle Applications
Our 1060 aluminum round aluminum pans can be used to produce various cookware products, such as deep drawing, spinning, handicrafts, reflective panels, traffic signs, decorative products, conductive materials, building materials, electrical appliances, etc.
1060 aluminum wafer is a commonly used aluminum alloy material with excellent processability, strength and corrosion resistance, and is widely used in the manufacture of various products.
- Kitchen utensils : It is used to make kitchen utensils such as pots, pot lids, and pot bottoms. It has good thermal conductivity and corrosion resistance.
- Lighting : 1060 aluminum discs can be used to make lighting equipment such as lampshades and lamp holders, and have good reflective performance and corrosion resistance.
- Electronics : 1060 aluminum wafers can be used to manufacture electronic product casings, radiators and other components, with good thermal conductivity and electrical performance.
- Chemical industry : 1060 aluminum discs can be used to manufacture chemical equipment, storage tanks, storage tanks, etc., and have good corrosion resistance.
- Automobile : 1060 aluminum discs can be used to manufacture auto parts, such as wheels, fuel tanks, radiators, etc., with good strength and corrosion resistance.

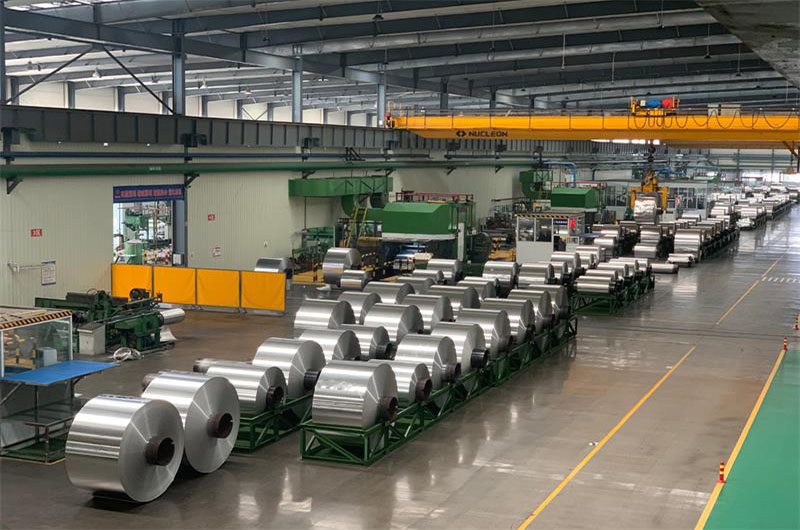

1060 Aluminum Disc Circle Factory
- Select high-quality raw materials : select high-quality aluminum alloy materials to ensure that the composition, oxygen content, and hardness of the materials meet the requirements.
- Strictly control the production process : In the process of processing, strictly control the process parameters of each link, such as temperature, pressure, speed, cooling method, etc., to ensure the stability and consistency of each process link.
- Keep equipment clean and maintain : Regularly clean and maintain processing equipment to ensure normal operation of equipment and stability of product quality.
- Inspection and inspection : During the processing, the necessary inspection and inspection are carried out on the size, surface finish, hardness, etc. of the aluminum discs to ensure that the products meet the requirements.
1060 Common Aluminum Disc
1060 H12 Aluminum Disc circle
The hardness of 1060 H12 aluminum disc is low, which is suitable for some demanding processing and forming processes, such as stamping, stretching, etc.;
Due to its low hardness and good ductility, 1060 H12 aluminum disc is suitable for applications that require stamping, stretching and other processing and forming processes, such as making kitchen utensils, lids, lamps, jars, handicrafts, etc.
1060 H14 Aluminum Disc circle
The hardness of 1060 H14 aluminum disc is relatively high, which is suitable for some applications requiring high strength.Such as making aluminum products, pressure vessels, etc.
Due to its relatively high hardness, 1060 H14 aluminum disc is suitable for some applications requiring high strength, such as making pressure vessels, ship materials, building materials, vehicles, etc.
The application of 1060 H12 and 1060 H14 aluminum discs is not limited to the above range, and the specific application should be selected and customized according to the needs and specific conditions of customers. At the same time, the selection and application of 1060 H12 and 1060 H14 aluminum discs should also consider factors such as their specifications, dimensions, surface treatment, and processing technology to ensure product quality and use effects.
Mechenical Property of 1060 Aluminum Circle
| Alloy Temper | Thickness(mm) | Tensile Strength(Mpa) | The Yield Strength(Mpa) | elongation(%) | hardness(HV) |
| 1060 0 | >0.2-0.5 | 60-100 | ≥15 | ≥20 | 20-30 |
| >0.5-1.0 | ≥30 | ||||
| >1.0-4.0 | ≥35 | ||||
| 1060 H22 | >0.2-0.5 | 80-120 | ≥60 | ≥12 | 30-40 |
| >0.5-1.0 | ≥15 | ||||
| >1.0-4.0 | ≥18 | ||||
| 1060 H24 | >0.2-0.5 | 95-135 | ≥70 | ≥6 | 35-45 |
| >0.5-1.0 | ≥8 | ||||
| >1.0-4.0 | ≥10 | ||||
| 1060 H26 | >0.2-0.5 | 110-155 | ≥75 | ≥2 | 43-55 |
| >0.5-1.0 | ≥4 | ||||
| >1.0-4.0 | ≥6 | ||||
| 1060 H18 | >0.2-0.5 | ≥125 | ≥85 | ≥2 | 50-65 |
| >0.5-1.0 | ≥3 | ||||
| >1.0-4.0 | ≥4 |
1060 Aluminum Circle Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min.A1 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | – | – | 0.05 | – | 0.05 | 0.03 | 0.03 | 99.6 |
1060 Aluminum Circle Diameter List
| ≧20 | ≧140 | ≧170 | ≧200 | ≧250 | ≧300 | ≧400 | ≧500 | ≧600 | ≧700 | ≧800 |
| 20 | 140 | 170 | 200 | 250 | 300 | 400 | 500 | 600 | 700 | 800 |
| 25 | 141 | 172 | 203 | 252 | 305 | 405 | 505 | 610 | 705 | 810 |
| 93 | 142 | 173 | 205 | 254 | 310 | 410 | 510 | 615 | 710 | 838 |
| 100 | 143 | 175 | 210 | 255 | 312 | 420 | 515 | 619 | 720 | 890 |
| 105 | 144 | 176 | 211 | 258 | 315 | 425 | 520 | 630 | 730 | 902 |
| 109 | 145 | 177 | 212 | 260 | 320 | 430 | 525 | 635 | 740 | 945 |
| 110 | 147 | 178 | 215 | 267 | 325 | 435 | 530 | 645 | 760 | 960 |
| 112 | 149 | 180 | 216 | 268 | 330 | 440 | 540 | 650 | 770 | 1000 |
| 115 | 150 | 181 | 217 | 270 | 335 | 445 | 545 | 655 | 780 | 1150 |
| 118 | 153 | 182 | 218 | 272 | 340 | 450 | 550 | 665 | 1200 | |
| 120 | 154 | 183 | 220 | 274 | 345 | 455 | 560 | 670 | ||
| 121 | 155 | 184 | 221 | 275 | 350 | 460 | 565 | 680 | ||
| 122 | 157 | 185 | 222 | 277 | 355 | 465 | 570 | 690 | ||
| 123 | 158 | 188 | 225 | 278 | 360 | 470 | 575 | |||
| 124 | 160 | 190 | 226 | 280 | 364 | 475 | 580 | |||
| 127 | 161 | 192 | 230 | 282 | 368 | 480 | 585 | |||
| 128 | 162 | 193 | 233 | 285 | 370 | 485 | ||||
| 129 | 163 | 195 | 235 | 290 | 375 | 490 | ||||
| 130 | 164 | 198 | 237 | 292 | 380 | 495 | ||||
| 132 | 165 | 238 | 293 | 385 | ||||||
| 133 | 166 | 240 | 295 | 390 | ||||||
| 134 | 167 | 242 | 395 | |||||||
| 135 | 168 | 245 | ||||||||
| 136 | 169 | 249 | ||||||||
| 137 | ||||||||||
| 138 | ||||||||||
| 139 |
Which One is Better After Processing?
1060 aluminum disc is a common aluminum alloy material with good processing performance and can be processed and formed by various processing techniques. The following are several common 1060 aluminum wafer processing techniques
- Stamping processing : 1060 aluminum discs can be stamped through molds to make aluminum products of various shapes, such as lids, plates, cans, etc.
- Stretching processing : 1060 aluminum discs can be stretched through a stretching machine to make various types of aluminum parts, such as product molding.
- Rolling processing : 1060 aluminum discs can be rolled through a rolling machine to roll thicker aluminum discs into thinner aluminum discs.
- Cutting processing : 1060 aluminum discs can be cut and processed by a cutting machine to cut large-sized aluminum discs into required specifications and sizes.
Which processing technology is better needs to be selected according to specific application requirements.
- For products requiring high strength such as pressure vessels, stretching or rolling processing can be selected.
- For products that require high processing precision, such as aluminum caps, you can choose stamping or cutting.
No matter which processing technology is used, the processing technology needs to be controlled and adjusted to ensure the quality and performance of the 1060 aluminum wafer.
