What is 1050 Aluminum Foil?
1050 aluminum foil is an aluminum foil made from alloy 1050, a commercially pure aluminum alloy containing 99.5% aluminum. It is known for its high purity and softness.
Since 1050 aluminum foil does not need to add other chemical elements, the production process of 1050 aluminum foil is simple, and the price is relatively cheap compared with alloy aluminum sheets. It is a very widely used aluminum foil.
With decades of experience in aluminum foil production, Haomei Aluminum can produce and supply high-quality aluminum foil in different sizes and states.
- 1050 Aluminum Foil
- 1060 Aluminum Foil
- 8011 Aluminum Foil
- 8079 aluminum Foil
- 8021 Aluminum Foil
- 1235 Aluminum Foil
- 8006 Aluminum Foil
- 3003 Aluminum Foil
1050 Aluminum Foil Specification
1050 aluminum foil is available in a variety of thicknesses to suit different applications. Thicker foils can be used for stronger purposes, while thinner foils are suitable for wrapping and wrapping.
| Material | 1050 Aluminum Foil |
|---|---|
| Standard | QQA-1876, ASTM B479 |
| Thickness | 0.016 - 0.2mm |
| Width | 20 - 1600mm |
| Temper | O, H18 etc, . |
Feature of 1050 Aluminum Foil
The main properties of 1050 aluminum foil include high purity, softness, flexibility, good electrical conductivity, corrosion resistance and thermal conductivity.
Due to its high electrical conductivity, corrosion resistance and processability,
- Good Conductivity : Due to its high purity, 1050 aluminum has excellent conductivity. It is used in applications where electrical conductivity is important, such as cables and capacitors.
- Thermal Conductivity : It has good thermal conductivity, suitable for cooking and as a heat insulation material.
- Corrosion Resistance : In general, aluminum has good corrosion resistance and alloy 1050 is no exception. It can withstand the effects of moisture and many chemicals without corroding.
Typical 1050 Aluminum Foil
When Aluminum Alloy 1050 is used specifically as aluminum foil, the commonly used temper is usually the "O" temper, and to a lesser extent the "H18" temper. These tempering temperatures are selected based on the properties required for the foil application :
1050 O Aluminum Foil
The "O" temper is the most common temper for 1050 aluminum foil.
1050 O is fully annealed, making the foil very soft and easy to process.
1050 O Aluminum Foil is suitable for applications where flexibility and formability are critical, such as packaging and wrapping.
1050 H18 Aluminum Foil
The "H18" temper represents an all-hard temper, which provides increased strength and stability compared to the soft "O" temper.
1050 H18 Aluminum Foil is available for applications requiring a stiffer, stronger foil.
These are the primary tempers used when aluminum alloy 1050 is specifically used in the form of aluminum foil. The choice between "O" and "H18" depends on the specific requirements of the foil application, with "O" being the more common choice for its soft and flexible properties.
Aluminum Alloy 1050 Foil Mechanical Properties
| Properties | Value |
|---|---|
| Tensile Strength | 55 - 95 MPa |
| Yield Strength | 35 - 75 MPa |
| Elongation | > 25% |
| Hardness | Low |
| Modulus of Elasticity | 69 GPa |
| Fatigue Strength | Relatively Low |
| Machinability | Good |
| Weldability | Yes (with proper procedures) |
Chemical Composition of 1050 Aluminum Foil
| Element | % |
|---|---|
| Si | 0.25 |
| Fe | 0.4 |
| Cu | 0.05 |
| Mn | 0.05 |
| Mg | 0.05 |
| Zn | 0.05 |
| Ti | 0.03 |
| V | 0.05 |
| Al | 99.5 |
| Other | 0.03 |

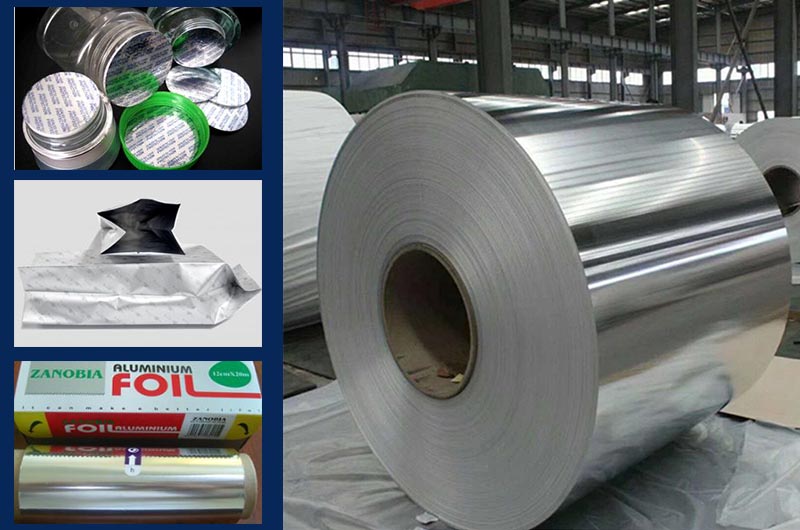

1050 Aluminum Foil Applications
1050 Aluminum is typically used in applications where easy handling of the foil is required, such as packaging and wrapping. Commonly used in electrical and chemical industries. 1050 aluminum foil alloy is also sometimes used to make heat sinks because it has a higher thermal conductivity than other alloys.
Application fields : food packaging, capacitors, cable tapes, aluminum foil gaskets, etc.
1050 Packing Aluminum Foil
1050 aluminum foil is a high-quality packaging material, which can be used for packaging food, medicine, cosmetics, tobacco and other products, and can also be used for packaging of pharmaceutical products.
- Features : high sealing, moisture-proof, fresh-keeping
- Advantages : 1050 aluminum foil will not cause any pollution to medicines
1050 Thermal Insulation Aluminum Foil
1050 aluminum foil can be used in the construction industry, such as for packaging insulation materials.
- Features : 1050 aluminum foil has excellent corrosion resistance and heat insulation performance
- Application : Building insulation materials, roof insulation materials, etc.

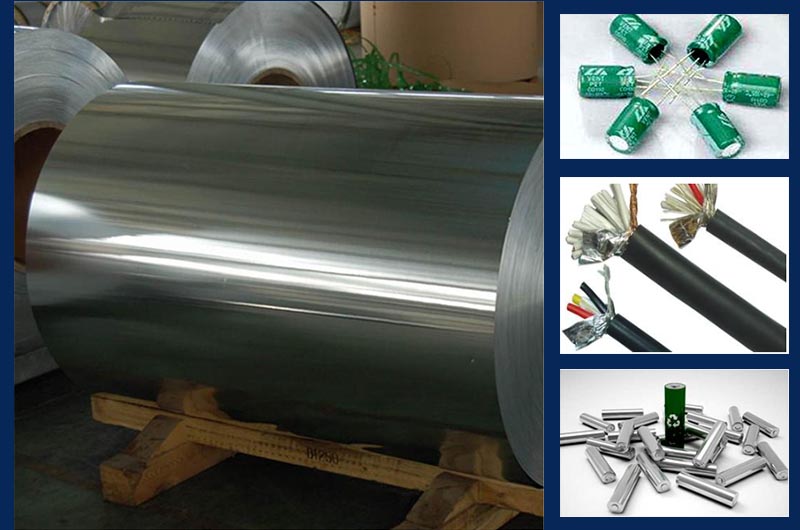

1050 Electronic Aluminum Foil
1050 aluminum foil is used for electrical components that require high conductivity, and is widely used in the electronics industry.
- Features : good electrical conductivity
- Application : Capacitors, inductors, batteries, electrolytic capacitors, transformer windings, electronic components, etc.
Chemical Industry
1050 aluminum foil can be used in the chemical industry, such as the manufacture of tanks and pipes, chemical containers, etc. Due to its excellent corrosion resistance and high temperature resistance, it can play a good protective role in the chemical production process.
Art
1050 aluminum foil can be used in the art industry, such as making aluminum foil paintings. 1050 aluminum foil has good plasticity and metallic luster, so it can be made into very beautiful works of art.
Frequently Asked Questions about 1050 Aluminum Foil
Is 1050 Aluminum Foil Suitable for Food Packaging?
Yes, 1050 aluminum foil is commonly used in food packaging. Its high purity makes it safe for direct food contact, and its flexibility and ability to hold the shape of packaged items make it suitable for packaging candy, chocolate and other food products.
Does 1050 Aluminum Foil have Good Electrical Conductivity?
Yes, 1050 aluminum foil has excellent electrical conductivity due to its high purity. It is used in electrical applications that require high conductivity, such as capacitors and cables.
Is 1050 Aluminum Foil Resistant to Corrosion?
Yes, aluminum in general, and 1050 aluminum in particular, has good corrosion resistance. It can withstand the effects of moisture and many chemicals without corroding, which makes it suitable for a variety of applications.
Can 1050 Aluminum Foil be used for Heat Insulation?
Yes, the good thermal conductivity of 1050 aluminum foil makes it suitable for use as a heat shield or insulation in various applications requiring temperature control.
What are the Advantages of Using 1050 Aluminum Foil in Cookware?
The softness and flexibility of 1050 aluminum foil make it easy to mold into the shapes needed for cookware items like pots and pans.
Is 1050 Aluminum Foil Recyclable?
Yes, aluminum is highly recyclable. 1050 aluminum foil can be recycled and used to make new aluminum products, reducing its impact on the environment.
Packing Detail of 1050 Aluminum Foil
Packaging details for 1050 aluminum foil may vary depending on the supplier, the form of the foil (e.g. roll or sheet), and the specific requirements of the customer.

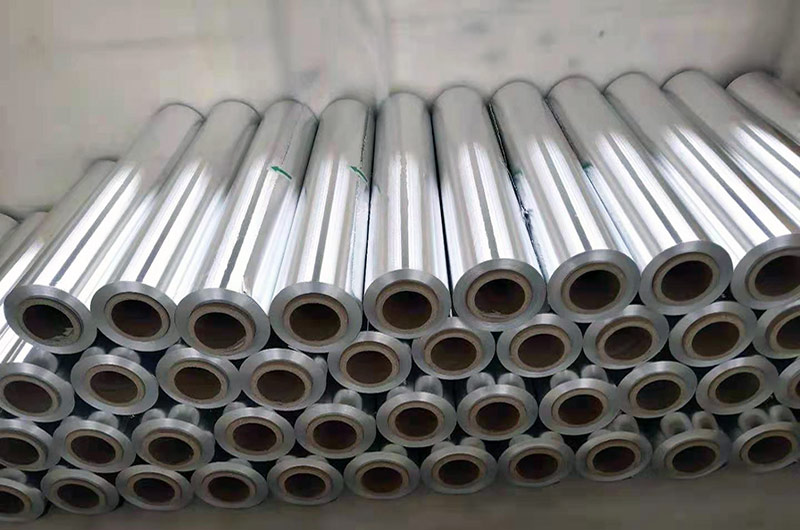

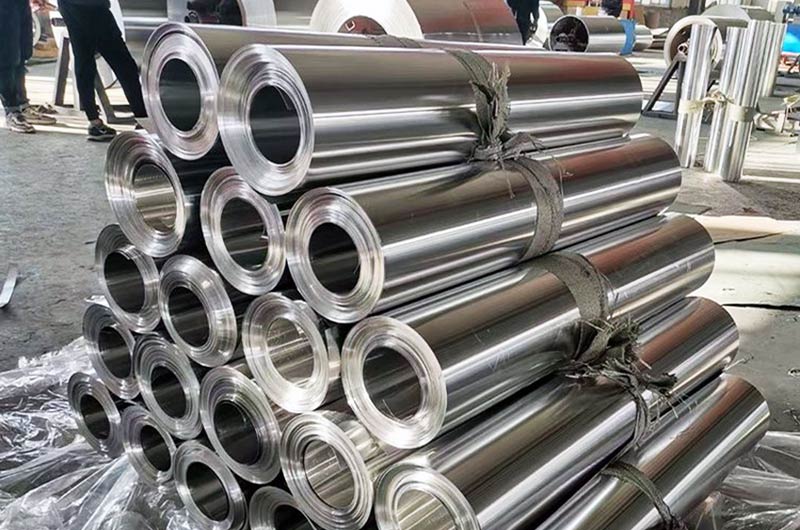

1050 Aluminum Foil Roll Packing
- Core material : cardboard or metal core is commonly used.
- Core Diameter : Typically 3 inches (76 mm) for industrial size rolls.
- Outer Packaging : Foil rolls are usually wrapped in a protective material such as plastic or kraft paper.
- Labeling : Each roll is labeled with basic information including alloy type, thickness, width and quantity.
- Palletized : Rolls are often palletized for easy handling and shipping.
1050 Aluminum Foil Packing
- Stacking : Sheets are stacked and bundled together.
- Stabilizer : To prevent sheets from sticking together, use a stabilizer material such as plastic or paper.
- Packing : Sheets are packed in corrugated cardboard boxes or wooden boxes.
- Labels : Each package includes a label with basic information.
Custom Packaging
Haomei Aluminum offers custom packaging options to meet specific customer needs, especially for special applications.
Safeguard
Regardless of the form (roll or sheet), aluminum foil protects against moisture, dirt and other contaminants to maintain its quality.
Packaging details for 1050 aluminum foil may vary, so it is advisable to communicate directly with the supplier or manufacturer to confirm packaging specifications for your particular order. Also, if you have specific requirements for packaging (for example, food-grade applications or special industrial uses), be sure to communicate these requirements with your supplier to ensure they are met. Proper packaging is essential to protect the foil from damage and contamination during storage and transport.
