Aluminum checkered panels are a common construction and industrial material, often used in floors, stair treads, platforms, truck floors, etc.

One side of the surface of the Aluminum Checkered Plate is embossed with a raised pattern, there are many types of patterns. Different patterns can adapt to different environments and different uses.

The important indicators of Aluminum Checkered Plate are size, thickness and rib height.

1. Size and thickness issues

If an aluminum checkered plate is too weak, it may not be able to withstand a specific load, while if it is too thick, it may increase cost and weight.

2. The problem of rib height

The rib height of the pattern is an important factor affecting the performance and appearance of the aluminum checkered plate. If the rib height is too low, the anti-slip effect will be poor.

Haomei Aluminum Aluminum Checkered Plate all uses aluminum plates that comply with national standards, ensuring the durability of the aluminum checkered plates.

• Custom sizes are available to meet client specific project needs.
• Aluminum checkered plates are available in various thicknesses to allow customers to choose the appropriate material for their application.
• Pattern options with different rib heights are provided to meet customers' different requirements for appearance and performance.

Aluminum Checkered Plate Features

• 1. Good anti-slip: The raised pattern on the aluminum checkered plate enhances grip, which is essential to prevent slips and falls. This makes it an ideal material for floors, steps and other surfaces where slip resistance is important.
• 2. Excellent Corrosion Resistance: One of the most noteworthy properties of aluminum checkered plate is its excellent corrosion resistance. Aluminum naturally forms a protective oxide coating that helps protect surfaces from rust and corrosion.
• 3. Light weight: aluminum checkered plate is much lighter than other metal plates such as steel. This lightweight feature makes it easier to transport and install. It reduces the overall load, which is particularly important in applications such as vehicle manufacturing, where reduced weight can improve fuel efficiency.
• 4. Remarkable Strength: Despite being lightweight, aluminum checkered plates still offer significant strength. It can withstand high levels of pressure and weight, making it suitable for heavy-duty applications. Its robustness ensures longevity and resistance to wear and tear.
• 5. Beautiful: Aluminum pattern plates are not only practical, but also have a beautiful appearance. The unique pattern adds a modern and industrial look, making it a popular choice for decorative applications such as architectural features and vehicle customization.
• 6. Ease of fabrication: Aluminum is relatively easy to fabricate. It can be cut, welded and formed into a variety of shapes and sizes, allowing for customization in a variety of applications. This ease of fabrication makes it the first choice for many manufacturers and builders.
• 7. Recyclability: Aluminum checkered plate is highly recyclable, and recycling aluminum requires only a fraction of the energy used to produce new aluminum. This property contributes to its sustainability and reduces its impact on the environment.

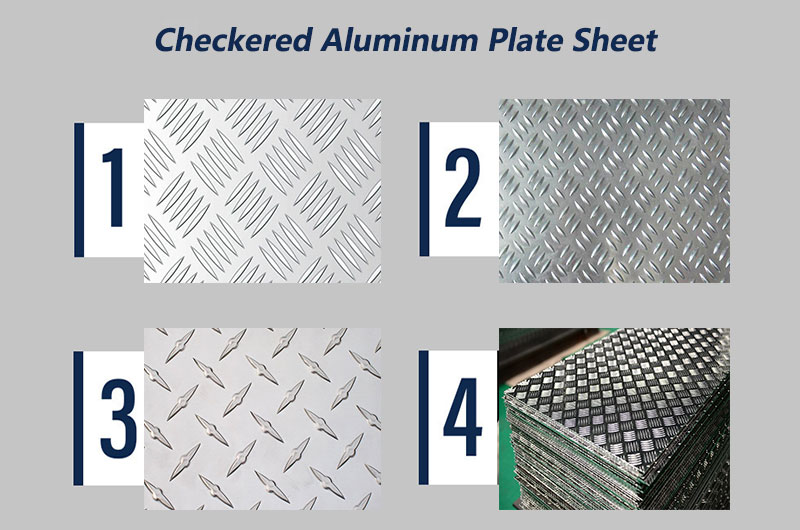

Checkered Aluminum Plate Classification

• Aluminum diamond plate
• 2 bar aluminum checker sheet
• 3 bar aluminum checker sheet
• 5 bar aluminum checker sheet
• Lentil pattern aluminum checker plate
• Orange peel aluminum checkered plate
• Spherical aluminum checkered plate
• rhombus aluminum checkered plate

•

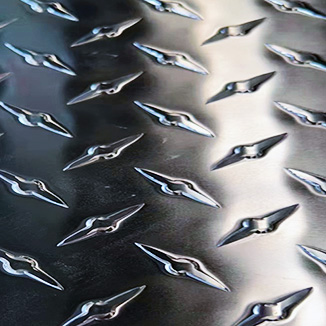

  Aluminum diamond plate

  With a diamond pattern, the raised diamonds on the surface provide extra anti-slip and durability, and have the same effect as five ribs, but are not commonly used.

•

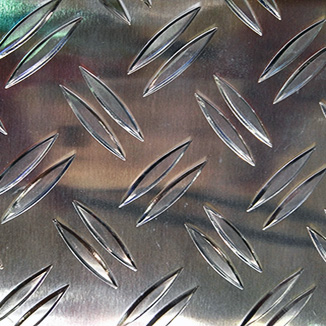

  2 bar aluminum checker plate

  has two parallel stripes on the surface and is often used on loading ramps, trench covers, dock floors, stair treads, and even on cars, trucks, ambulances, and fire trucks.

•

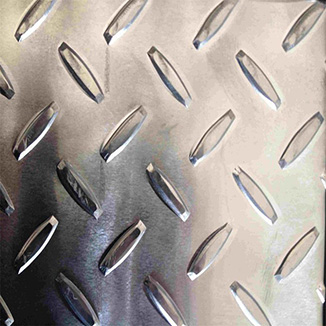

  3 bar aluminum checker plate

  Commonly used for exterior decoration on trucks, trailers and other vehicles or stair handrails and railings where slip resistance is required.

•

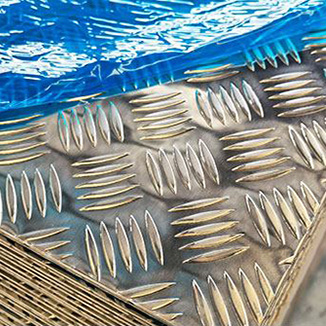

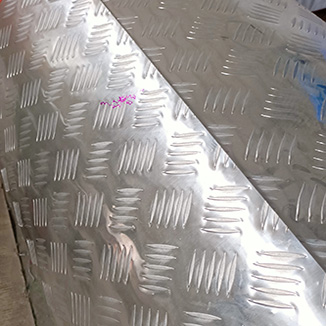

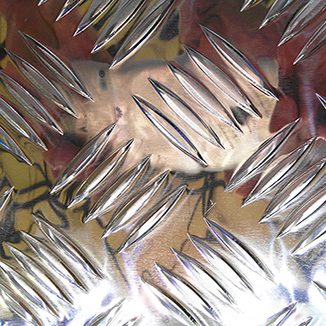

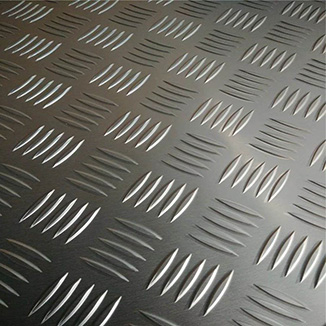

  5 Bar Aluminum Checker plate

  It has five parallel stripes, and each pattern has an angle of 60-80 degrees with other patterns, so this pattern has excellent anti-slip properties and is cheap.

•

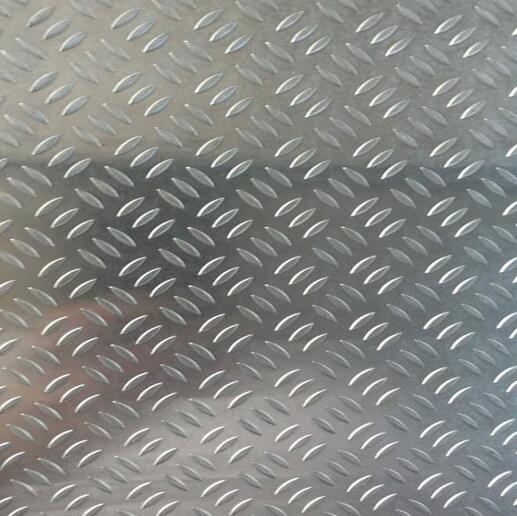

  Lentil pattern aluminum checker plate

  It is a commonly used style of anti-skid aluminum plate with good anti-skid effect. It is mainly used for anti-skid carriages, platforms, anti-skid cold storage floors, anti-skid workshop floors, and anti-skid elevators.

•

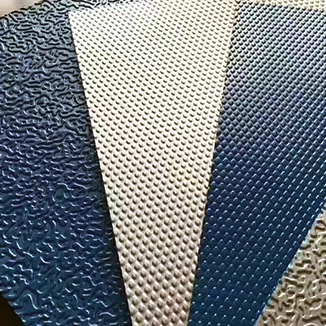

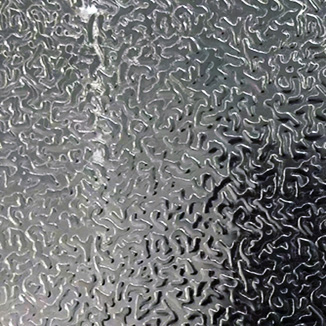

  Orange peel aluminum checkered plate

  classic orange peel aluminum checkered plate, variant orange peel aluminum checkered plate (also known as insect pattern). Its surface shows a pattern similar to orange peel, so it can also be called orange peel pattern aluminum plate. It is a series of pattern products commonly used in refrigerators, air conditioners and packaging.

•

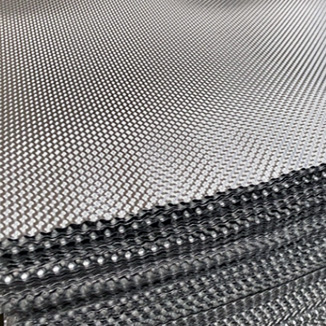

  Spherical aluminum checkered plate

  The surface shows small spherical patterns, mainly used in outer packaging. The appearance is quite beautiful. Due to the special pattern, the strength of this aluminum plate is much higher than other pattern series.

•

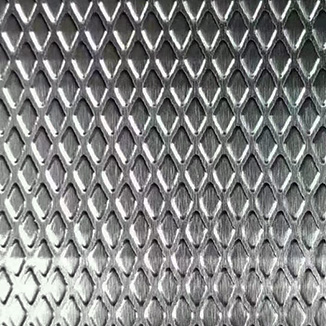

  rhombus aluminum checkered plate

  commonly used for packaging pipes or outer packaging.

Checkered Aluminum Plate Sheet Alloys Commonly Used

• 4017 Aluminum Checkered Plate
• 3003 Aluminum Checkered Plate
• 6061 Aluminum Checkered Plate
• 5086 Aluminum Checkered Plate
• 1060 Aluminum Checkered Plate
• 5083 Aluminum Checkered Plate
• 5052 Aluminum Checkered Plate

• 4017 Aluminum Checkered Plate

  4017 aluminum has good corrosion resistance, comparable to 3 series aluminum alloys such as 3003. 4017 Typical Applications Truck beds and trailers, walkways and aisles, flooring, wall panels, decorative and architectural uses.

• 3003 Aluminum Checkered Plate

  The commonly used Temper of 3003 Aluminum Checkered Plate is H22, and the bright surface can be bent. 3003 checkered plate is the most widely used among the checkered aluminum plates.

• 1060 Aluminum Checkered Plate

  Aluminum alloy pattern plates processed with 1060 aluminum plates as the base can adapt to normal environments and are low-priced. Usually cold storage, floors, and outer packaging often use this kind of patterned aluminum plates.

• 6061 Aluminum Checkered Plate

  The commonly used Temper for 6061 is T6, which is not bendable. Typical applications include walkways, floors, ramps, bridge floors, ditches and drainage covers, mezzanines, platforms, and stair treads.

• 5086 Aluminum Checkered Plate

  5086 Plate is easy to form, stamp and weld, 5086 Aluminum Checkered Plate is commonly used for anti-skid on hulls, gangways, ramps, superstructures, and marine applications.

Surface selection of aluminum checker plate

• Mill finish aluminum checker plate
• Bright finish aluminum checker plate
• Anodized aluminum checker plate
• Colored Aluminum checker Plate

•

  Mill finish aluminum checker plate

  It has a certain matte appearance and slight color variations may occur due to the manufacturing process. The honed surface provides a basic level of corrosion resistance.

•

  Bright finish aluminum checker plate

  Bright finish typically involves polishing the surface of an aluminum checker plate to enhance its appearance. This surface treatment gives the material a shiny and reflective surface, making it more aesthetically pleasing. It can also improve corrosion resistance to a certain extent.

•

  Anodized aluminum checker plate

  Anodizing the surface of aluminum checker plate enhances its corrosion resistance and provides a more durable finish. Anodized panels are preferred in corrosive environments and certain construction applications.

•

  Colored Aluminum checker Plate

  This type involves an additional coloring process, either through anodizing or painting. Use it when aesthetics are the primary concern, providing a functional and visually appealing appearance.

How to Choose the Right Checked Aluminum Plate

Selecting the appropriate checked aluminum plate involves considering various factors to ensure it aligns with the specific requirements of the intended application. Here are key considerations:

• Application Requirements: Identify the primary purpose of the plate, whether it's for flooring, decorative purposes, or structural components, as this will influence the required thickness, pattern, and alloy.
• Alloy Selection: Choose an alloy based on the environmental conditions the plate will face. For example, marine applications may require alloys with high corrosion resistance.
• Pattern and Thickness: The choice of pattern and thickness depends on the intended use. For flooring, a pattern that maximizes traction is crucial, while structural applications may require thicker plates.
• Finish: Consider the desired finish, whether it's a polished, mill, or painted surface, based on aesthetic preferences and environmental considerations.

Checkered Aluminum Plate Sheet Common Application Examples

Aluminum pattern plate has good anti-slip properties. Therefore it is commonly used in loading ramps, trench covers, dock floors, stair treads, and even in cars, trucks, ambulances and fire trucks, decorative wall panels, cabinets, ceilings, etc.

The unique properties of aluminum checkerboard, such as durability, slip resistance and aesthetics, make it a versatile material suitable for a variety of applications:

Industrial Flooring Aluminum checkered panels are widely used for flooring in industrial environments due to their durability and anti-slip properties. It provides a safe walking surface in factories, warehouses and other areas where slip hazards may exist.

Stair Treads and Walkways Due to their unique texture, aluminum treads are often used to create walkways and ramps prone to slipping. The raised pattern on aluminum treads provides excellent traction, making it an ideal material for stair treads and other walkway areas in commercial and industrial settings.

Vehicle Construction aluminum pattern plates are used in the automotive and transportation industries for a variety of applications such as truck bodies, trailer floors and running boards. Its lightweight nature helps improve fuel efficiency, while its durability can withstand the wear and tear of transportation.

Decorative Applications The unique beauty of aluminum grating makes it a popular choice for decorative purposes. It is used in features such as wall panels, facades and ceilings in architecture and interior design to add a modern and industrial look to buildings and spaces.

Toolboxes and Storage Units The strength and durability of aluminum diamond sheet make it an excellent material for constructing tool boxes, storage units and equipment boxes. These items benefit from the material's ability to withstand heavy loads and resist corrosion.

Dock Surfaces and Boat Decks Aluminum decking is commonly used in marine environments on dock surfaces, boat decks and other areas where moisture and slip resistance are critical.

Refrigerator lining In the food industry, embossed aluminum pattern panels are used in applications such as walk-in refrigerator floors and catering cart interiors, where their easy-to-clean surface and corrosion resistance are beneficial.

Aluminum Checkered Plate Thickness Stock

Thickness measured does not include protruding parts.

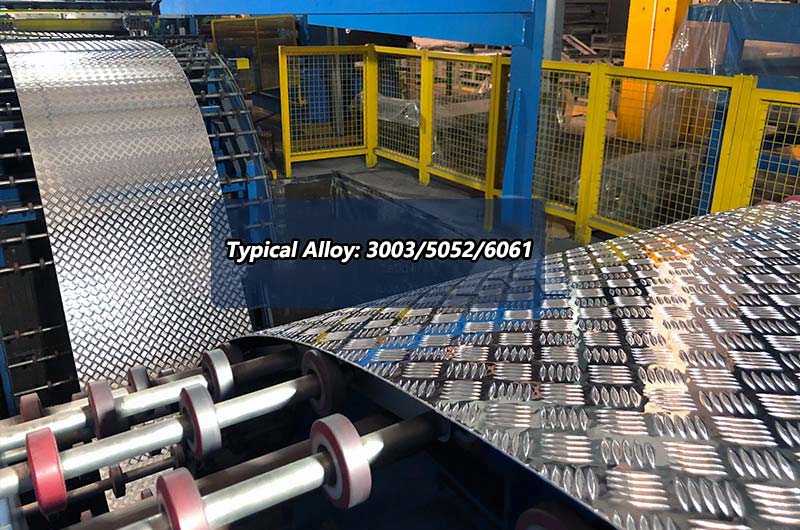

Aluminum Checker Plate Manufacturing Process

The manufacturing of Aluminum Checker Plate requires careful control of each step to produce a high-quality product, ensuring the quality and durability of the material. The following is a brief overview of the manufacturing method of aluminum checkered plates:

• 1. Material selection: First, select high-quality aluminum plates as raw materials. These aluminum plates are usually pure aluminum or aluminum alloys and have good strength and corrosion resistance.
• 2. Cutting: Cut the selected aluminum plate to the required size. This is usually done using cutting equipment, shears or laser cutters.
• 3. Surface treatment: The surface of the aluminum plate is cleaned and treated to ensure a smooth surface and remove possible dirt and oxide layers.
• 4. Pattern processing: The pattern is produced by an embossing machine or a knurling machine. These machines can form different concave and convex patterns on the surface of aluminum panels, usually in a checkerboard or rectangular shape, to provide extra grip and decorative effects.
• 5. Heat treatment: Sometimes, in order to increase the hardness and strength of the aluminum plate, heat treatment may also be performed. This involves heating an aluminum sheet to a certain temperature and then rapidly cooling it to change its crystal structure.
• 6. Trimming and Retouching: After the pattern plate is manufactured, it may need to be trimmed and retouched to ensure it meets specifications and quality standards.
• 7. Inspection: Conduct final quality inspection to ensure that the aluminum pattern plates comply with relevant standards and regulations.

Problems Often Encountered During Use and How to Solve Them

While checked aluminum plates are renowned for their durability, certain issues may arise during use. Here are some common problems and their solutions:

• Corrosion: Regular cleaning and application of protective coatings can mitigate corrosion. Choosing a corrosion-resistant alloy is also crucial for long-term durability.
• Warping: Ensure proper installation and fastening to prevent warping. Proper storage and handling before installation are also essential.
• Surface Damage: Avoid dragging heavy objects across the surface to prevent scratches. In cases of minor damage, refinishing or polishing can restore the appearance.
• Slip Resistance Reduction: Over time, wear and tear may reduce slip resistance. Regular maintenance, such as cleaning and retexturing, can restore slip resistance.

Related search about Checkered Aluminium

• aluminum checkered plate price
• aluminum checkered plate weight
• aluminum checkered plate grade
• aluminum checkered plate specification

People also Ask about Checker Aluminium

• How much is aluminium checker plate?
• What grade is aluminium checker plate?
• What is the name of the checkered plate?
• Is a checker plate the same as a chequered plate?

The Latest Prder about Checker Aluminium

• Mexico 30 tons Aluminum Tread Checkered Plate Coil
• 5052 Oil Tanker Aluminum Tread Checkered Plate
• 5052 Marine Aluminum Tread Checkered Plate
• 3003 Oil Tanker Aluminum Tread Checkered Plate

Conclusion

Checked aluminum plates stand as a testament to the ingenuity of materials engineering, offering a combination of strength, versatility, and aesthetic appeal. Whether it's for enhancing safety in industrial settings or adding a touch of sophistication to architectural designs, these plates have become indispensable in a wide array of applications.

By understanding their functions, alloys, selection criteria, applications, and troubleshooting measures, one can harness the full potential of checked aluminum plates, ensuring their optimal performance and longevity in diverse environments.
