Automotive aluminum plates help improve vehicle performance, fuel efficiency and reduce emissions and are used in various vehicle components such as body panels, engine components, wheels and suspension systems.

Automotive aluminum plate

Haomei Aluminum offers a wide range of lightweight aluminum alloy plates with the strength, formability, corrosion resistance and surface quality required for automotive panels. The weight of the automotive aluminum plate can be reduced by 10%, and the fuel efficiency can be increased by 6%-8%. For every 100kg reduction in vehicle curb weight, the fuel consumption per 100 kilometers can be reduced by 0.3-0.6 liters.

Automobile Aluminum Plate Advantages

Incorporating aluminum plate into a car has brought a variety of advantages, including reducing weight, corrosion resistance, formability, thermal conductivity and recyclable.

  • 1. Lightweight advantage: Car aluminum is known for its lightweight characteristics. Compared with traditional steel, the density of aluminum is smaller. Therefore, the use of aluminum parts can significantly reduce the quality of the entire vehicle. Lightweight is a key strategy to improve fuel economy, reduce emissions, and improve performance.
  • 2. High corrosion resistance: Aluminum has high corrosion resistance, which makes car parts more durable. However, in some cases, additional measures need to be taken, such as coating or anticorrosive treatment to improve the durability of aluminum parts.
  • 3. Good moldability: Another advantage of using aluminum plates in a car is its formability. It can easily shape complex design and outlines, enabling manufacturers to create more fashionable and more air dynamic vehicles. This not only enhances the aesthetics, but also improves wind resistance, thereby achieving better high -speed handling.
  • 4. Outstanding thermal conductivity: Aluminum plates also have excellent thermal conductivity. They can quickly emit the heat generated by other components in the engine or vehicle system. This helps prevent overheating and help improve engine efficiency.
  • 5. Recyclable: Compared with other materials such as steel or plastic, it is much easier to recover aluminum plates. The recovery rate of aluminum is very high, and the energy required during the recovery process is less than the production of new boards with raw materials. For consumers with environmental awareness, this makes aluminum an attractive choice for automobile manufacturing.

Applications of aluminum on car

Automotive aluminum plates typically use the 3xxx, 5xxx, 6xxx, 7xxx and 1xxx series of alloys, each of which has different properties and applications.

  • 5000 series aluminum alloys : mainly used in automobile body panels, such as AA5182 and AA5754 aluminum alloys. These alloys have high strength and corrosion resistance, which can provide the rigidity and stability of the car body.
  • 6000 series aluminum alloys : commonly used in automotive frame, wheels and suspension systems, such as AA6061 and AA6063 aluminum alloys. These alloys have high strength and rigidity, which can provide vehicle stability and driving performance.
  • 7000 series aluminum alloys : Usually used to manufacture high-strength and lightweight automotive body and chassis components, such as AA7075 aluminum alloys. These alloys are extremely strong and rigid, which can provide better safety and performance.

Car aluminum plays an important role in automotive manufacturing, and its application covers the body, engine, chassis and other aspects.

Specific Application Alloy Thickness(mm) Width(mm)
Body Car door 5182 0.15-600 C
Front and rear cover
Car Yingzi board (leaf board) 5083, 5052
Car lift 5083, 5182, 5005 0.15-600 20-2650
Car inspection fixture 5005, 5083
Car 5083
Car primer 5083, 5754
Car paddy 3003, 5052
Car seat skeleton 6061 1-500 100-2650
Chassis Car wheels, truck wheels 6061 0.30-600 150-600
New energy vehicle battery bottom plate 6061
Power system Aluminum plate for fuel tank 5052, 5083, 3003, 5a05
Heavy card storage cylinder 5083
Power battery shell 3003, 6061 0.20-4.5 20-2650
Aluminum foil for battery cells 1235, 1060, 1070 0.014/0.015/0.016 280-120
Battery 5754 0.15-600 20-2650
Car power battery soft bag 8021, 8079 0.014-0.2 C

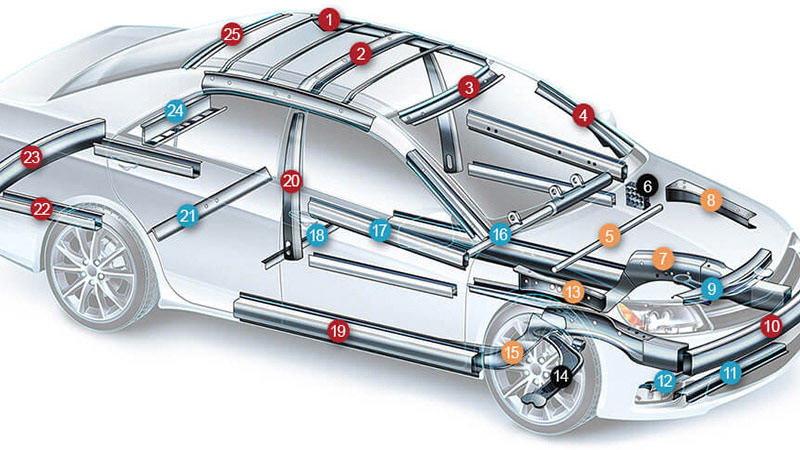

Car aluminum structure diagram

  • High Strength, Safety Critical

    • 1 Roof Rails
    • 2 Roof Cross Members
    • 3 Front Header
    • 4 A-Pillar
    • 10 Front Bumper
    • 19 Rocker Reinforcement
    • 22 Rear Frame Rail
    • 23 Rear Bumper
    • 25 Rear Header
  • High Strength, Structural

    • 9 Upper Radiator Support
    • 11 Radiator Support
    • 12 Subframe
    • 16 IP Beam
    • 17 Side Door Intrusion Beam
    • 18 Floor Cross Member
    • 21 Floorpan Cross Member
    • 24 Side Panel Cross Member
  • High Strength, Crush Quality

    • 5 Strut Tower Brace
    • 7 Front Frame Rail
    • 8 Upper Rail
    • 13 Upper Rail
    • 15 Rail Support
  • Other

    • 6 ABS Block
    • 14 Control Arm

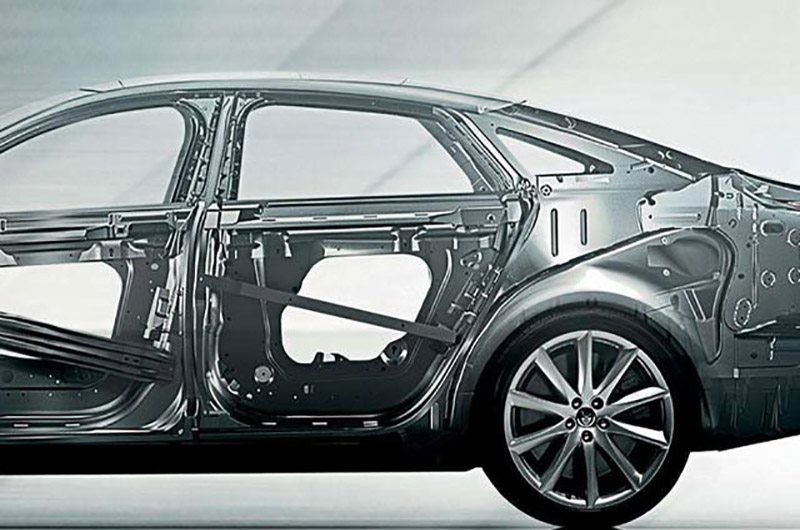

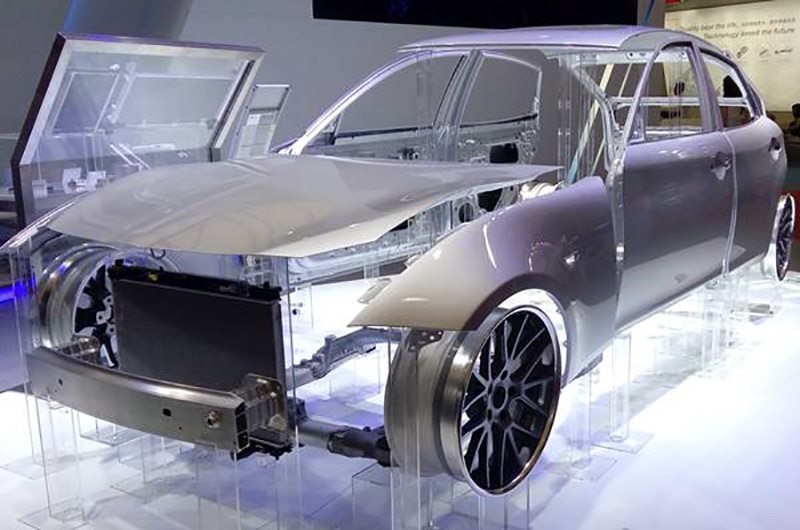

Aluminum for automobile body

Aluminum plates for car body include body frames, doors, hoods, etc. This not only helps to reduce the weight of the vehicle, but also improves the rigidity and corrosion resistance of the body.

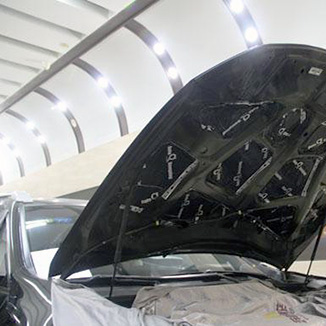

  • Engine hood inner panel

    Engine hood inner panel

    5182-O aluminum alloy thin plate, which has good formability and is applied to the inner plate of the hood.

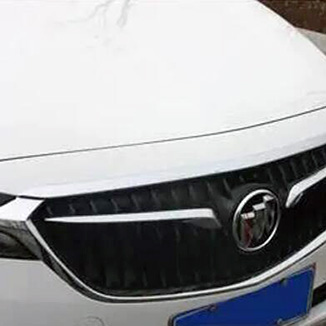

  • Engine hood outer panel

    Engine hood outer panel

    6016-T4P, 6014-T4P aluminum alloy, which has the characteristics of high formability, good baking sclerosis, natural timeliness stability, etc., and is widely used in the outer board of the cover.

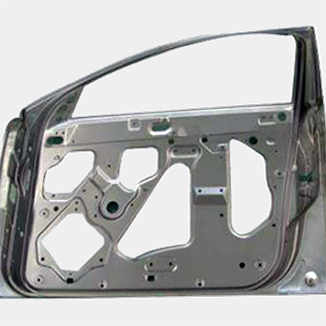

  • Door inner panel

    Door inner panel

    5182-O aluminum alloy thin plate, which has good formability and is applied to the inside of the door.

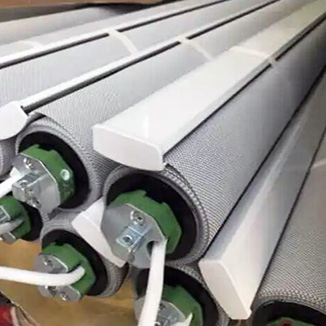

  • Sun visor lifting shaft and roller

    Sun visor lifting shaft and roller

    5754-O aluminum alloy thin plate, which has good formability and is applied to the ranging scroll of the shade curtain.

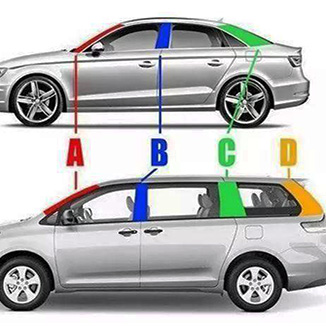

  • ABC column

    ABC column

    7075-O/H18 is used for thermal pressure molding ABC column. It has good stamping formability after heating and has high strength after heat treatment.

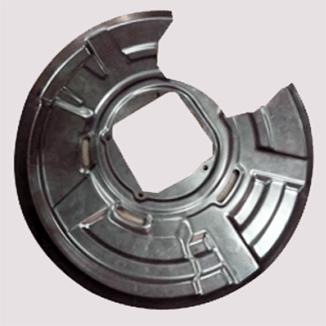

  • Brake disc cover

    Brake disc cover

    5754-O aluminum alloy thin plate, which has good fatigue resistance and is applied to a brake padding cover.

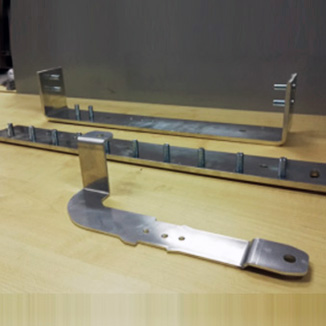

  • Busbar

    Busbar

    6101-T63/T64 products require the strength requirements, and have good conductive performance, which is applied to new energy electric vehicle BUSBAR and charging piles.

Automotive Aluminum for Engine

Aluminum is widely used in the manufacturing of automobile engines. For instance, components such as the engine cylinder block, cylinder head, and crankcase can be made from aluminum to reduce the overall weight of the engine, enhance heat dissipation efficiency, and improve fuel efficiency.

Automotive Aluminum for Car Chassis System

The application of aluminum alloy in the automobile chassis and suspension system helps reduce unsprung mass, improving vehicle handling and driving comfort.

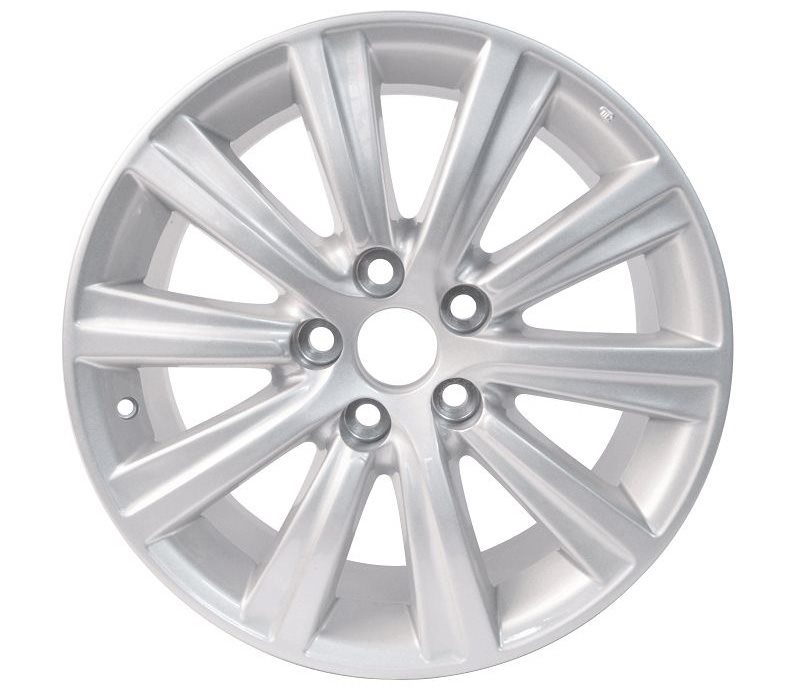

Automotive Aluminum for Wheel Hub

6061 aluminum alloy wheels are currently mainly produced using gravity casting and low-pressure casting. The reduction in wheel weight contributes to lower fuel consumption and increased payload. Additionally, aluminum wheels dissipate heat well, extending the fatigue life of the wheels.

Automotive Aluminum Plate for Battery

Aluminum alloy battery casing provides excellent protection and heat dissipation performance for batteries, ensuring safe operation and longevity. Aluminum alloy can also be used for battery heat sinks and battery connectors, improving the efficiency of battery charging and discharging, enhancing battery performance, and extending the driving range.

Battery tray

The 6061-T651 product requires meet the strength requirements and has good impact toughness, which is applied to the battery bottom board.

Auto aluminum alloy

The aluminum alloy applied on the car is mainly cast aluminum alloy, accounting for about 8% of the total aluminum volume, and about 65% of them are used in the form of die castings. The aluminum alloy involved in the car manufacturing is the following. No one can be contacted to contact us Email:info@alu- sheet-coil.com

7 Series auto aluminum

  • 7b05 Automotive Aluminum
  • 7a46 Automotive Aluminum
  • 7129 Automotive Aluminum
  • 7021 Automotive Aluminum
  • 7005 Automotive Aluminum
  • 7003 Automotive Aluminum

6 Series auto aluminum

  • 6116 Automotive Aluminum
  • 6a61 Automotive Aluminum
  • 6a16 Automotive Aluminum
  • 6a10 Automotive Aluminum
  • 6a01 Automotive Aluminum
  • 6463 Automotive Aluminum
  • 6181 Automotive Aluminum
  • 6151 Automotive Aluminum
  • 6111 Automotive Aluminum
  • 6106 Automotive Aluminum
  • 6082 Automotive Aluminum
  • 6063 Automotive Aluminum
  • 6061 Automotive Aluminum
  • 6060 Automotive Aluminum
  • 6053 Automotive Aluminum
  • 6022 Automotive Aluminum
  • 6016 Automotive Aluminum
  • 6014 Automotive Aluminum
  • 6013 Automotive Aluminum
  • 6011 Automotive Aluminum
  • 6010 Automotive Aluminum
  • 6005 Automotive Aluminum

5 Series auto aluminum

  • 5754 Automotive Aluminum
  • 5657 Automotive Aluminum
  • 5457 Automotive Aluminum
  • 5454 Automotive Aluminum
  • 5252 Automotive Aluminum
  • 5182 Automotive Aluminum
  • 5083 Automotive Aluminum
  • 5052 Automotive Aluminum
  • 5049 Automotive Aluminum
  • 5005 Automotive Aluminum

3 Series auto aluminum

  • 3a21 Automotive Aluminum
  • 3005 Automotive Aluminum
  • 3003 Automotive Aluminum
  • 3002 Automotive Aluminum

2 Series auto aluminum

  • 2117 Automotive Aluminum
  • 2036 Automotive Aluminum
  • 2024 Automotive Aluminum
  • 2017 Automotive Aluminum
  • 2010 Automotive Aluminum
  • 2008 Automotive Aluminum
  • 1200 Automotive Aluminum

1 Series auto aluminum

  • 1100 Automotive Aluminum
  • 1070 Automotive Aluminum
  • 1050 Automotive Aluminum
  • 1060 Automotive Aluminum
Alloy Applications
1100 interior decorative parts, nameplates, town decoration parts
1200 squeeze condensation tube and heat transmitted wings
2008 Internal and external coverage parts (shell board), structural parts
2010 Internal and Outside covers, structural parts
2011 screw
2017 fastener
2117 fastener
2024 fastener
2036 Internal and external coverage, carrying flooring, seat rack
3002 decoration, nameplate
3003 Brazed Heat Exchanger Tubes, Heater and Evaporator Fins, Heater Inner and Outer Tubes, Oil Cooler and Air Conditioning Pipes
3004 topical coverage board and parts
3005 fiber welded heat sink tube, heater and edge support, swallow -fired parts
4002 composite comfortable welded board
4032 Forging piston
4044 composite fiber welding board
4104 composite fiber welding board
4043 welding line, composite Xuan welding board
5005 decoration, nameplate, inlaid decoration
5454 coverage parts, parts, truck shock absorbers
5252 decoration
5182 endoic plates, mud, insulation shielding, air cleaning device disk and rate, structure and welding parts, carrier floor
5454 Various parts, wheels, engine auxiliary brackets and engine seats
5457 decoration
5657 decoration
5754 intrastics, mud, insulation shielding, air cleaning device disk and hood, structure and welding parts, carrier floor
6591 heat exchanger, radiator (NLILOR)
6009 body rice gold materials (mold brackets, front wing plates, sliding wingspan, outer wing plate) inner board, engine cover inner and outer plate, inner door version, carrier floor, seat shock absorber enhancement, structure and welding parts
6010 wall board, skylight pole, inside of the door, inside of the shed, spare wheel rack, wheelyi, seat rack and track
6111 body rice gold, wall board, etc.
6005A body parts
6022 Inner and outer shell board
6051 heat exchanger
6016 body rice gold piece
6063 Squeezing structure materials (transmission system parts, connecting parts, engine parts, etc.). Door frames, window frames, attachments, etc.
6463 Squeezing structure materials (transmission system parts, connecting parts, etc.). Door frames, window frames, etc.
6053 fastener
6061 body squeezing material, bracket squeeze material and plate, suspension forging, ink -motion tube, rinse and forging drive shaft drive. Spare wheel rack. The shock absorber enhanced the tendons. Tight the cause. The brake cylinder "Squeezing material, oil transportation system, bumper, heat exchanger
6151 Structural parts (such as transmission system, engine system, connecting parts, etc.), wheel spoke, various brackets
6262 structural parts, such as the transmission system, engine system parts and connectors, etc.
6082 General structure, brake parts parts
6181a body board
7003 seat tracks, shock absorber enhanced tendons
7021 shock absorber with flat rules and polygonal rods and bracket boards
7029 Light or anode oxidizing shock absorber uses a plane rule polygonal stick
7072 condenser and radiator wings
7129 shock absorber uses a plane ruler polygonal rod, shock absorber enhanced tendon, orbital extrusion material

Automotive Aluminum Plate Specifications

  • The thickness : 0.5 - 6mm
  • The width : 1000 - 2500mm
  • The length : 2000 - 12000mm
  • Standards : ASTM B209, EN 485-2, JIS H4000
  • Certification : ISO, CE

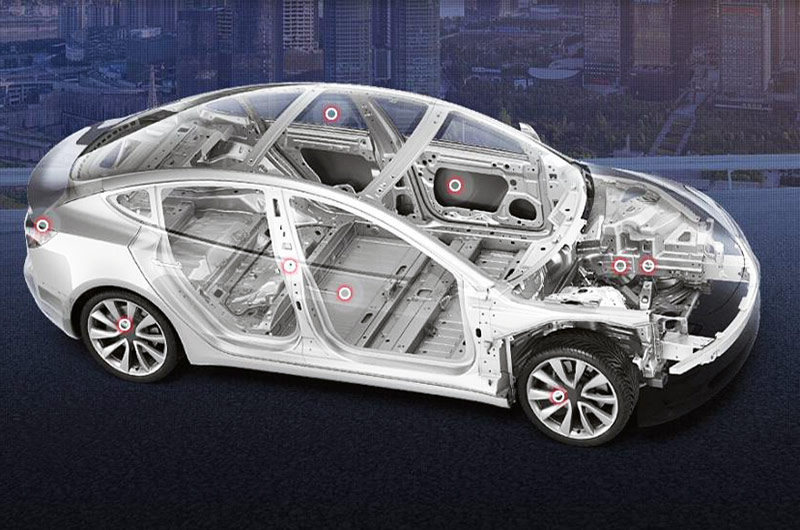

Aluminum for Automotive Body Sheet Panels

Key Automotive Aluminum Plate Introduction

6061 Aluminum Body Panels

  • Body structure : key components such as frame/chassis in the car body structure.
  • Engine components : The high heat resistance of 6061 aluminum alloy makes it an ideal material for the manufacture of engine components. It is often used in the manufacture of automotive engine radiators, intake manifolds, water tanks, exhaust pipes and cylinder heads and other components.
  • Suspension system : The light weight and high strength of 6061 aluminum alloy make it very suitable for key components such as springs, shock absorbers and control arms in automobile suspension systems.
  • Interior and decoration : 6061 aluminum alloy not only has good processing performance, but also can show a very beautiful metallic luster after surface treatment, so it is also widely used in the manufacture of automotive interior and decorative parts, such as door panels, Steering wheel, shift lever and other components.

6061 Automotive Aluminum

6063 Automotive Aluminum Plate

  • Window frames and doors : 6063 aluminum alloy has good corrosion resistance and plasticity, so it is usually used to make parts such as door and window frames and doors of automobiles.
  • Roof and luggage rack : The light weight and high strength of 6063 aluminum alloy make it an ideal material for the manufacture of automotive roofs and luggage racks.
  • Body structure : 6063 aluminum alloy has low strength, but low density and good processing performance, so it can be used to manufacture some parts in the car body structure, such as side panels, rear panels, etc.
  • Air conditioner and radiator : 6063 aluminum alloy has good thermal conductivity and plasticity, making it an ideal material for automotive air conditioners and radiators.
  • Car lights and other decorative parts : 6063 aluminum alloy can not only present a very beautiful metallic luster after surface treatment, but also can be used to manufacture automotive headlights, fog lights and other parts, as well as other decorative parts.

5182 Automotive Aluminum Plate

5182 aluminum alloy is a commonly used aluminum alloy, especially suitable for automobile manufacturing. Its main features are high strength, excellent formability and corrosion resistance.

  • Body panels : The high strength and good formability of 5182 aluminum alloy make it the material of choice for automotive body panels. It is commonly used in doors, roofs and compartments.
  • Fuel tank : Because 5182 aluminum alloy has excellent corrosion resistance and sealing performance, it is widely used in the manufacture of automobile fuel tanks.
  • Luggage Rack : The high strength and light weight of 5182 aluminum alloy make it an ideal material for automotive luggage racks.
  • Engine cover and wheel cover : Because 5182 aluminum alloy has good surface treatment performance, it is often used in the manufacture of automobile engine cover and wheel cover.
  • Suspension system : The high strength and excellent fatigue performance of 5182 aluminum alloy make it an ideal material for automobile suspension system. It is commonly used to make components such as wheels, steering rods, tie rods and connectors.

5182 Automotive Aluminum

5754 Automotive Aluminum Plate

  • Fuel tank : 5754 aluminum alloy has good corrosion resistance and weldability, so it is often used in the manufacture of automotive fuel tanks.
  • Body panels : 5754 aluminum alloy has good formability and strength, and is widely used in the manufacture of automobile body panels. It can be processed into various shapes of plates by die-casting, forging, stretching and other processes, and can also be formed by deep drawing and bending.
  • Wheel : 5754 aluminum alloy has good strength and corrosion resistance, so it is widely used in the manufacture of automobile wheels. Its lightweight feature can reduce the fuel consumption of the vehicle and improve the fuel economy of the vehicle.
  • Heat exchanger : Due to the high strength and corrosion resistance of 5754 aluminum alloy, it can also be used to manufacture heat exchangers for automobiles, such as radiators, air conditioners and other components.

5754 aluminum alloy is widely used in automobile manufacturing, and its strength, formability and corrosion resistance are excellent, which can help automobile manufacturers improve the performance, durability and fuel economy of vehicles.

7075 Automotive Aluminum

7075 aluminum alloy is a high-strength aluminum alloy that is commonly used in automotive racing because of its good mechanical properties and fatigue resistance.

  • Suspension system : 7075 aluminum alloy can be used for various components in the suspension system, such as suspension arms and connecting rods.
  • Wheels : Because 7075 aluminum alloy has the characteristics of high strength and light weight, it can be used on the wheels of high-performance racing cars.
  • Engine parts : 7075 aluminum alloy can also be used for engine parts, such as pistons, connecting rods and valve covers.
  • Racing chassis : Due to the high strength and lightweight characteristics of 7075 aluminum alloy, it can be used on racing chassis to improve the rigidity and reduce weight of the whole chassis.
  • Body components : In some high-performance cars, 7075 aluminum alloy can be used for body components, such as doors, hoods and trunk lids, etc.
