The 4017 aluminum tread plate is an aluminum plate with a raised diamond pattern on the surface. It is also known as aluminum diamond plate, aluminum checker plate, or aluminum floor plate. The diamond pattern on the surface of the sheet provides slip resistance, making it suitable for industrial and commercial flooring applications.
The 4017 aluminum tread has a raised diamond or 5 bar surface that provides excellent slip resistance making it suitable for a variety of applications where slip resistance is important such as floors, stairs, ramps and platforms. Additionally, it is used in transportation, construction and industrial applications.
4017 Aluminum Tread Plate Specifications
Thicker plates are typically used for heavy duty applications while thinner plates are used for lighter applications
- Thickness : 1.0mm - 7.0mm (standard thickness is 3.0mm, 4.0mm, 5.0mm)
- Width : 1000mm - 2000mm (standard width is 1250mm, 1500mm)
- Length : 1000mm - 6000mm (customized upon request)
- Pattern : diamond, 5 bar
- Pattern depth : 0.8mm-1.2mm
- Pattern spacing : 1.6mm-2.0mm
- Temper : H12, H14, H16, H18, H22, H24, H26, H32, H34
- Surface treatment : mill finish, polished finish, and coated finish.
4017 Aluminum checkered plate can be finished in different ways to meet the specific requirements of different applications.
4017 Aluminum Tread Plate informations
| Property | Description |
| Corrosion Resistance | Similar results to standard 3 series alloys based on field tests (EN 4017) |
| Surface Treatment | Suitable for coil coating, powder coating, and spray coating |
| Formability | Good formability; suitable for roll forming and fabrication |
| Weldability | Can be welded using MIG, TIG, LASER, and high-frequency methods |
| Recommended Wire | 4043 is recommended for welding, though other wires can also be used |
Features of 4017 Aluminum Tread Plate
- Corrosion Resistance.According to field tests, 4017 aluminum tread plate exhibits outstanding effect, and similar results as standard 3 series alloys.
- Surface Treatment. High surface gloss, clear and three-dimensional pattern.
- Weldability.4017 aluminum tread plate can be well welded by MIG, TIG, LASER ad high frequency methods.
Typical 4017 Aluminum Tread Plate
4017 aluminum pattern plate, also known as aluminum-manganese alloy pattern plate, usually has two patterns : diamond pattern and 5 bar. These patterns provide excellent slip resistance, making the material suitable for a variety of applications.
4017 H22 Aluminum Tread Plate
The tread pattern on the 4017 H22 Aluminum Pedals is generally a raised diamond pattern that provides a high level of slip resistance and durability. The board is available in a variety of thicknesses and sizes to meet specific application requirements.
In addition to its strength and non-slip performance, 4017 H22 aluminum pedals also have good corrosion resistance, making them ideal for use in harsh environments. It is also lightweight, helping to reduce the overall weight of a vehicle or structure, improving fuel efficiency and reducing costs.
4017 Aluminum Diamond Tread Plate
The diamond pattern on the 4017 aluminum alloy tread plate is a raised diamond design on the surface of the plate.
- Function : Diamond has excellent anti-slip performance, usually slightly weaker than 5 bar aluminum diamond tread plate.
- Application : 4017 aluminum diamond tread plate is an ideal material for floors, stairs, ramps and other applications where slip resistance is important.
- Price : The pattern is relatively simple, and the price is cheaper than 5 bar aluminum diamond tread plate.

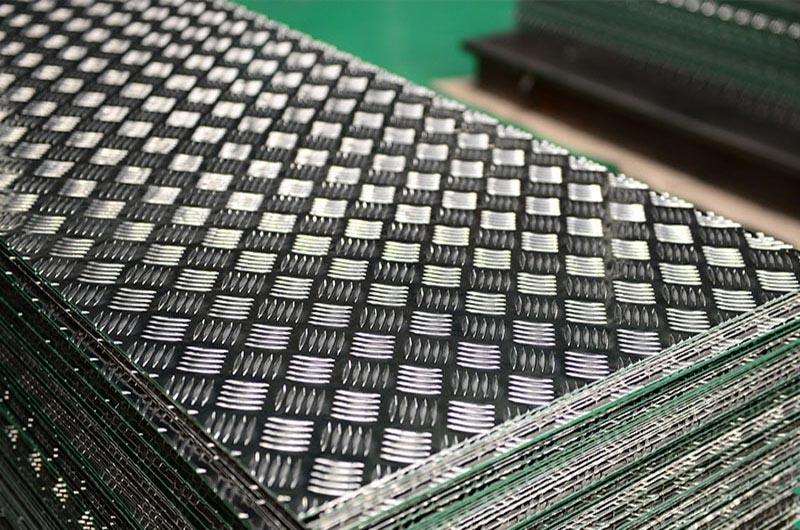

5 Bar 4017 Aluminum Tread Plate
The 5 bar pattern on the 4017 aluminum pedals is five raised bars arranged in a cross pattern on the surface of the plate.
- Function : The 5-grid pattern provides excellent slip resistance, but due to the more complex pattern and more contact points between the sheet and the surface, the 5-bar pattern is generally considered to provide better slip resistance.
- Price : 5 bar diamond plate is usually more expensive than 4017 aluminum diamond plate due to the more intricate pattern and additional machining required to produce it.
When choosing between these two types of aluminum diamond treads, consider the level of slip resistance your application requires, as well as your budget.
- Slip resistance : If you need a higher level of slip resistance and are willing to pay more, then the 5 grid pattern may be a better choice.
- Price Cost : If slip resistance is less important, or if you need to keep costs low, 4017 Aluminum Diamond pedals may be a better choice.
Pattern size and spacing can vary depending on the thickness and size of the board and specific application requirements, it is important to select the proper pattern and size of 4017 aluminum treads for the intended use to ensure optimum performance and durability.
4017 Aluminum Tread Plate Applications
4017 aluminum tread plate is widely used in truck beds and trailers, walkways and flooring, wall panels, tool boxes, decorative trim, and architectural applications
4017 Aluminum Floor Plate
4017 aluminum treads are commonly used in flooring applications, especially in areas where slip resistance is important, such as industrial facilities, airports and transport vehicles.
- Pattern Type : The most commonly used pattern is 5 bar with a smooth surface between the bars.
- Advantages : non-slip, durable, corrosion-resistant, easy to clean.

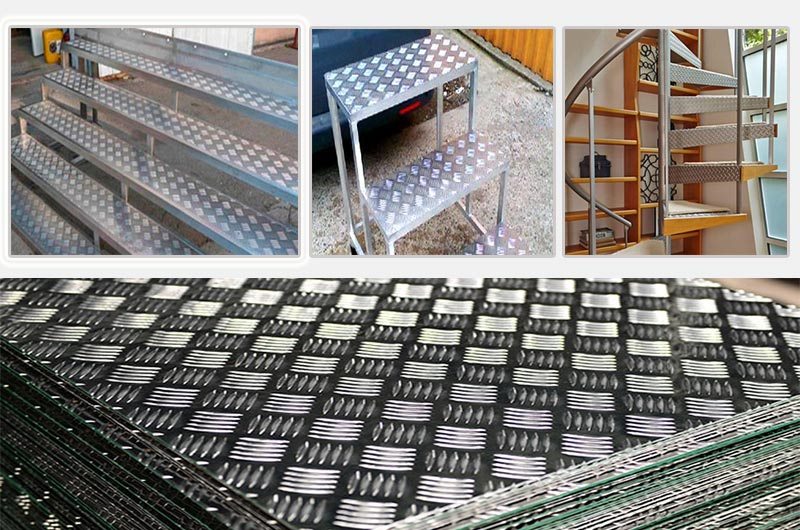

4017 Aluminum Stair Treads Sheet
The non-slip properties of 4017 Aluminum Treads make it an ideal material for stairs, offering increased safety and durability.
- Pattern Type : The most commonly used pattern is 5 bar with a smooth surface between the bars.
- Specific applications : Stair treads in buildings, boats and vehicles to provide a safe walking surface.
4017 Aluminum Checker Plate for Ramp
The 4017 Aluminum Checker Plate is typically used in ramp applications to provide excellent traction for vehicles and pedestrians.
- The most commonly used is the 5 bar 4017 Aluminum Checker Plate
- Specific applications : ramps in buildings, boats and vehicles to provide a safe surface for loading and unloading.

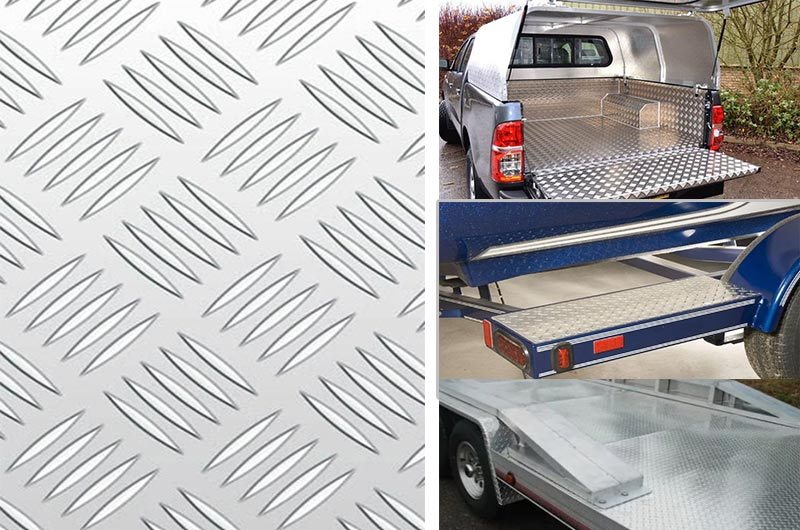

4017 Aluminum Treads Sheet for Trailer and Truck Bed Flooring
4017 Aluminum Treads are known for their durability, slip resistance and corrosion resistance, making them an ideal material for applications where heavy loads and harsh environments are present.
- Thickness : 0.8mm- 10mm
- Aluminum Treads Sheet pattern type : can be customized to meet specific size and shape
- Application : Trailer and truck bed floors

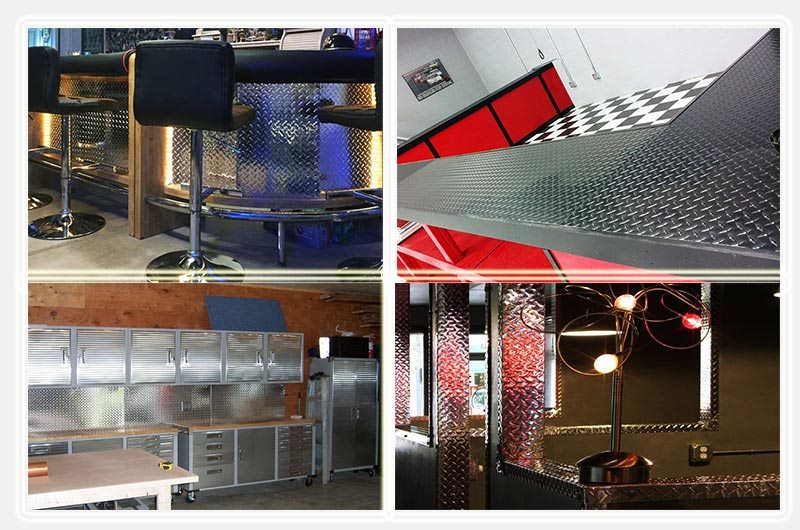

4017 Aluminum Checker Plate for Decorative
The attractive appearance of 4017 Aluminum Checker Plate makes it a popular material for decorative applications and is often used as wall protection in high traffic areas.
- 4017 Aluminum Checker Plate Type : 5 Bar 4017 Aluminum Checker Plate, 4017 Aluminum Diamond Plate and other decorative patterns.
- Applications : Decorative uses for wall cladding, construction, furniture and signage.

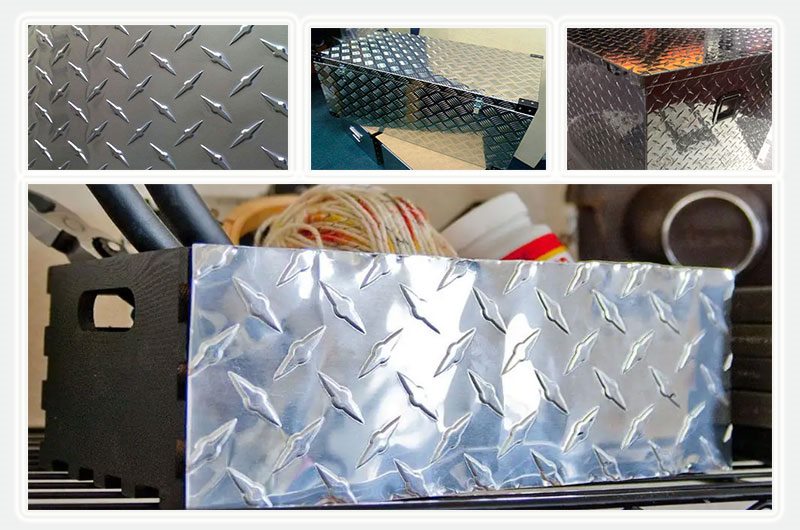

4017 Aluminum Diamond Plate Toolboxes
The corrosion-resistant properties of 4017 aluminum treads make them ideal for tool boxes as it protects tools and equipment from rust and other types of corrosion.
- Pattern Type : Diamond 4017 Aluminum Plate
- Pros : Durable, lightweight and corrosion resistant.
Mechanical Properties of 4017 Aluminum Tread Plate
| Temper | Proof (MPa) | UTS (MPa) | % Elongation | Bend Radius | |
| (min) | (90°bend) | (180°bend) | |||
| H16 | 150 | 175-225 | 2% | %T | 2T |
| H18 | 180 | 200-265 | 2% | 1T | 2%T |
| H44 | 110 | 140-185 | 4% | 0T | 1T |
| H46 | 150 | 175-225 | 2% | %T | 2T |
| H48 | 180 | 200-265 | 4% | 1T | 2%T |
Physical Properties of 4017 Aluminum Tread Plate
| Property Value Unit | Value | Unit |
| Density at 20℃ | 2.72 | g / cm3 |
| Melting Range | 560-640 | ℃ |
| Thermal Capacity | 900 | J / kg℃ |
| Thermal Conductivity | 200 | W / m℃ |
| Thermal Expansion | 23×10-6 | / ℃ |
| Resistivity at 20℃ | 32 | nΩm |
| Modulus of Elasticity | 70 | GPa |
| Modulus of Rigidity | 27 | GPa |
Chemical Composition of 4017 Aluminum Tread Plate
| Elements | Si | Fe | Cu | Mn | Mg | Zn | Al |
| Min (%) | 0.6 | – | 0.1 | 0.6 | 0.1 | – | Remain |
| Max (%) | 1.6 | 0.7 | 0.5 | 1.2 | 0.5 | 0.2 | Remain |
4017 Aluminum Tread Plate Stock List
| Size & Description | Thickness/in | Width/in | Length/in | Type |
| 0.045" 4017 H22 Aluminum Diamond Plate 12" X 12" | 0.045" | 12" | 12" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 12" X 24" | 0.045" | 12" | 24" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 12" X 36" | 0.045" | 12" | 36" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 12" X 48" | 0.045" | 12" | 48" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 24" X 24" | 0.045" | 24" | 24" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 24" X 36" | 0.045" | 24" | 36" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 24" X 48" | 0.045" | 24" | 48" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 36" X 36" | 0.045" | 36" | 36" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 36" X 48" | 0.045" | 36" | 48" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 48" X 48" | 0.045" | 48" | 48" | Diamond |
| 0.045" 4017 H22 Aluminum Diamond Plate 48" X 120" | 0.045" | 48" | 120" | Diamond |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 12" X 12" | 0.045" | 12" | 12" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 12" X 24" | 0.045" | 12" | 24" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 12" X 36" | 0.045" | 12" | 36" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 12" X 48" | 0.045" | 12" | 48" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 24" X 24" | 0.045" | 24" | 24" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 24" X 36" | 0.045" | 24" | 36" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 24" X 48" | 0.045" | 24" | 48" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 36" X 36" | 0.045" | 36" | 36" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 36" X 48" | 0.045" | 36" | 48" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 48" X 48" | 0.045" | 48" | 48" | 5 bar |
| 0.045" 5 Bar 4017 Aluminum Tread Plate 48" X 120" | 0.045" | 48" | 120" | 5 bar |
| 0.063" 4017 H22 Aluminum Diamond Plate 12" X 12" | 0.063" | 12" | 12" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 12" X 24" | 0.063" | 12" | 24" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 12" X 36" | 0.063" | 12" | 36" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 12" X 48" | 0.063" | 12" | 48" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 24" X 24" | 0.063" | 24" | 24" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 24" X 36" | 0.063" | 24" | 36" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 24" X 48" | 0.063" | 24" | 48" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 36" X 36" | 0.063" | 36" | 36" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 36" X 48" | 0.063" | 36" | 48" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 48" X 48" | 0.063" | 48" | 48" | Diamond |
| 0.063" 4017 H22 Aluminum Diamond Plate 48" X 120" | 0.063" | 48" | 120" | Diamond |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 12" X 12" | 0.063" | 12" | 12" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 12" X 24" | 0.063" | 12" | 24" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 12" X 36" | 0.063" | 12" | 36" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 12" X 48" | 0.063" | 12" | 48" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 24" X 24" | 0.063" | 24" | 24" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 24" X 36" | 0.063" | 24" | 36" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 24" X 48" | 0.063" | 24" | 48" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 36" X 36" | 0.063" | 36" | 36" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 36" X 48" | 0.063" | 36" | 48" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 48" X 48" | 0.063" | 48" | 48" | 5 bar |
| 0.063" 5 Bar 4017 Aluminum Tread Plate 48" X 120" | 0.063" | 48" | 120" | 5 bar |
| 0.100" 4017 H22 Aluminum Diamond Plate 12" X 12" | 0.100" | 12" | 12" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 12" X 24" | 0.100" | 12" | 24" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 12" X 36" | 0.100" | 12" | 36" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 12" X 48" | 0.100" | 12" | 48" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 24" X 24" | 0.100" | 24" | 24" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 24" X 36" | 0.100" | 24" | 36" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 24" X 48" | 0.100" | 24" | 48" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 36" X 36" | 0.100" | 36" | 36" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 36" X 48" | 0.100" | 36" | 48" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 48" X 48" | 0.100" | 48" | 48" | Diamond |
| 0.100" 4017 H22 Aluminum Diamond Plate 48" X 120" | 0.100" | 48" | 120" | Diamond |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 12" X 12" | 0.100" | 12" | 12" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 12" X 24" | 0.100" | 12" | 24" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 12" X 36" | 0.100" | 12" | 36" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 12" X 48" | 0.100" | 12" | 48" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 24" X 24" | 0.100" | 24" | 24" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 24" X 36" | 0.100" | 24" | 36" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 24" X 48" | 0.100" | 24" | 48" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 36" X 36" | 0.100" | 36" | 36" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 36" X 48" | 0.100" | 36" | 48" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 48" X 48" | 0.100" | 48" | 48" | 5 bar |
| 0.100" 5 Bar 4017 Aluminum Tread Plate 48" X 120" | 0.100" | 48" | 120" | 5 bar |
| 0.125" 4017 H22 Aluminum Diamond Plate 12" X 12" | 0.125" | 12" | 12" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 12" X 24" | 0.125" | 12" | 24" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 12" X 36" | 0.125" | 12" | 36" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 12" X 48" | 0.125" | 12" | 48" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 24" X 24" | 0.125" | 24" | 24" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 24" X 36" | 0.125" | 24" | 36" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 24" X 48" | 0.125" | 24" | 48" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 36" X 36" | 0.125" | 36" | 36" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 36" X 48" | 0.125" | 36" | 48" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 48" X 48" | 0.125" | 48" | 48" | Diamond |
| 0.125" 4017 H22 Aluminum Diamond Plate 48" X 120" | 0.125" | 48" | 120" | Diamond |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 12" X 12" | 0.125" | 12" | 12" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 12" X 24" | 0.125" | 12" | 24" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 12" X 36" | 0.125" | 12" | 36" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 12" X 48" | 0.125" | 12" | 48" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 24" X 24" | 0.125" | 24" | 24" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 24" X 36" | 0.125" | 24" | 36" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 24" X 48" | 0.125" | 24" | 48" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 36" X 36" | 0.125" | 36" | 36" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 36" X 48" | 0.125" | 36" | 48" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 48" X 48" | 0.125" | 48" | 48" | 5 bar |
| 0.125" 5 Bar 4017 Aluminum Tread Plate 48" X 120" | 0.125" | 48" | 120" | 5 bar |
| 0.188" 4017 H22 Aluminum Diamond Plate 12" X 12" | 0.188" | 12" | 12" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 12" X 24" | 0.188" | 12" | 24" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 12" X 36" | 0.188" | 12" | 36" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 12" X 48" | 0.188" | 12" | 48" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 24" X 24" | 0.188" | 24" | 24" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 24" X 36" | 0.188" | 24" | 36" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 24" X 48" | 0.188" | 24" | 48" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 36" X 36" | 0.188" | 36" | 36" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 36" X 48" | 0.188" | 36" | 48" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 48" X 48" | 0.188" | 48" | 48" | Diamond |
| 0.188" 4017 H22 Aluminum Diamond Plate 48" X 120" | 0.188" | 48" | 120" | Diamond |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 12" X 12" | 0.188" | 12" | 12" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 12" X 24" | 0.188" | 12" | 24" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 12" X 36" | 0.188" | 12" | 36" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 12" X 48" | 0.188" | 12" | 48" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 24" X 24" | 0.188" | 24" | 24" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 24" X 36" | 0.188" | 24" | 36" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 24" X 48" | 0.188" | 24" | 48" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 36" X 36" | 0.188" | 36" | 36" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 36" X 48" | 0.188" | 36" | 48" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 48" X 48" | 0.188" | 48" | 48" | 5 bar |
| 0.188" 5 Bar 4017 Aluminum Tread Plate 48" X 120" | 0.188" | 48" | 120" | 5 bar |
How to Clean 4017 Aluminum Tread Plate
Cleaning 4017 aluminum pedals is a fairly simple process that can help preserve their appearance and prevent corrosion.
- Prepare the cleaning solution : Mix warm water and a mild detergent in a bucket. You can also use commercially available special aluminum cleaners.
- Rinse The Plate : Use a hose or pressure washer to rinse the aluminum pedal with water to remove loose dirt and debris.
- Applying the cleaning solution : Dip a soft-bristled brush or sponge in the cleaning solution and apply it to the aluminum pedals, a small amount at a time.
- Scrub the Sheet : Use a brush or sponge to gently scrub the sheet in a circular motion to remove any stubborn stains or grime.
- Rinse the plates : Rinse the aluminum pedals thoroughly with water using a hose or pressure washer to remove the cleaning fluid.
- Dry the board : Wipe the aluminum checkered board dry with a clean dry cloth.
Note : Avoid harsh or abrasive cleaners such as steel wool or metal brushes as they can scratch the surface of the aluminum pedals. Also, do not use acidic cleaners or solutions containing bleach, ammonia, or soda, as they can damage the aluminum surface.
